ACOPOWER 100 Watt Solar Panel Kit

ACOPOWER 100 Watt Solar Panel Kit
ACOPOWER 100 Watt Solar Panel Kit
ACOPOWER 100 Watt Solar Panel Kit
ACOPOWER 100 Watt Solar Panel Kit
ACOPOWER 100 Watt Solar Panel Kit
ACOPOWER 100 Watt Solar Panel Kit

12 days left or until sold out

Buy for $139.99

Retail Price: $175.90 (+20%)

https://forums.woot.com/t/2132383

Features

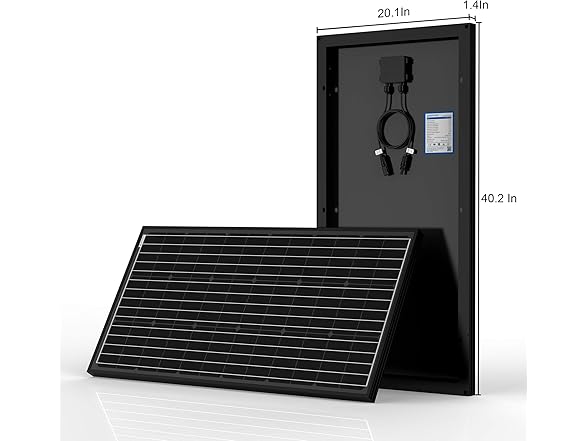

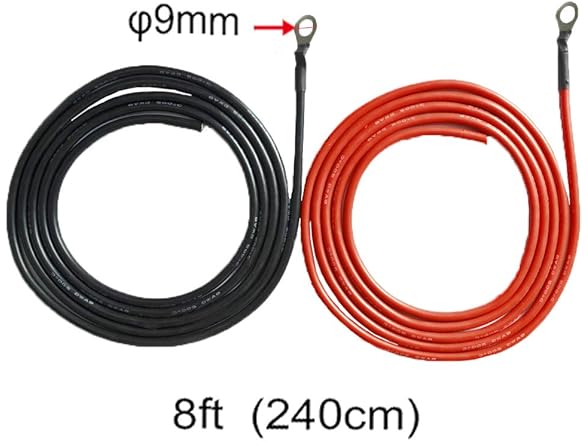

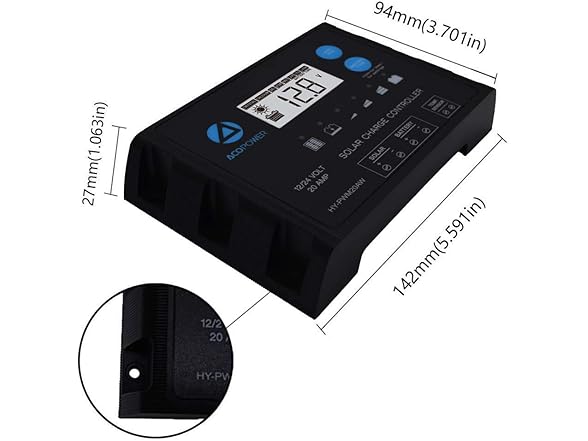

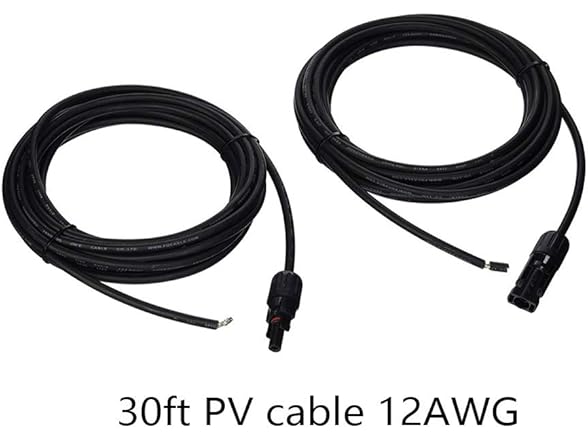

ACOPOWER 100W MONO SOLAR KIT 100W Mono Solar PanelPeak Power (Pmax):100WPeak Circuit Voltage(Voc):22V Max Power Voltage(Vmp):17.48V Short Circuit Current(Isc):6.14A Max Power Current(Imp):5.71A Power Tolerance Range:0~ +3% Maximum System Voltage DC:1000V Wind resistance:2400pa Weight:12.8 lb Dimension:40.2*20.1*1.4 Inch Application Class:Class A Test condition:1000W/m², AM1.5,25℃ 20A MPPT Charge Controller Ultra-fast tracking speed Accurately recognizing and tracking of multiple power point User programmable for battery types, load control etc. Common positive grounding design（If your system is common negative grounding design, please contact us before shipping） Rated charge current: 20A Battery voltage range: 8V~32V Max.PV open circuit voltage: 100VDC Max.PV input power: 12V/260W,24V/520W Enclosure: IP30 Mounting Z Bracket-2Sets 1PC 30ft 12AWG PV Cable 1PC 8FT 8AWG Tray Cable 1PC Cable Entry Housing Order will be delivered in multiple packages

  • Set for 100W Solar Panel ---- 1PCS 100W mono solar panel collocation with 20A PWM waterproof solar charge controller, 30ft 10AWG solar adaptor kit, 8ft 10AWG tray cable, cable entry housing, this ACOPOWER easy-to-use off-grid solar panel system professional for you to install and make your life portable and convenient
  • High Performance ---- Our ACOPOWER 100Watt mono Solar Panel designed with the grade A+ solar cells inside the panel, which has wide energy storage with 22% of the high solar cell efficiency, more efficient more faster charging is your better choice everywhere
  • Solar Charging Protection ---- 20A PWM solar charge controller integrates efficient charging to increase battery life and improve system performance. Advanced charge control technology can prevent the battery from over charge, over voltage, discharge and short circuit, reversed polarity protection.8 Battery type compatible - Li-ion, LiFePO4, LTO, gel, AGM, etc.
  • Wide Application ---- Solar Panel Equipment Kit for RVs, cabins, homes, boats, back-up and remote power use. The compact size design is more popular with RVs and campers, and multiple 100-watt solar panels can be connected in parallel to become 12V solar panel, or in series to become 24V solar panel
  • Solar Panel Warranty --- US based company with local support and 5 years equipment and 20 years performance warranty. If you have questions, please feel free to contact us, we support online and offline services

Shipping Note: Shipping to Alaska, Hawaii, APO addresses, or PO Boxes is not available for this item.

Warranty: 5 Year Manufacturer Warranty

Optional Asurion Protection Plan: To further protect your purchase, you can buy an Asurion protection plan from Amazon here. Review the FAQs for additional information.

Specs

Specifications
Color 0 Ah
Connector Type USB
Ean 0810073751071
Included Components Solar Panel ，20A Controller，Cable Entry Housing，Mounting Z Bracket and Cables
Item Weight 17.11 pounds
Material Polycarbonate
Maximum Current 5.72 amps
Maximum Power 100.0 watts
Maximum Voltage 12 volts
Model Number HY-SPKM-100W20A
Number of Items 1
Part Number HY-SPKM-100W20A
Power Source Type Adaptor,Battery Powered
Size 100W PWM20A
Style Battery
UNSPSC Code 26111600
UPC 810073751071
Upper Temperature Rating 50 degrees_celsius
Brand Name ACOPOWER



In the Box:

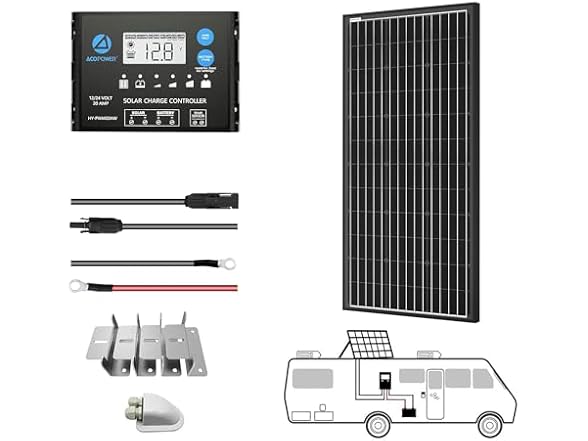

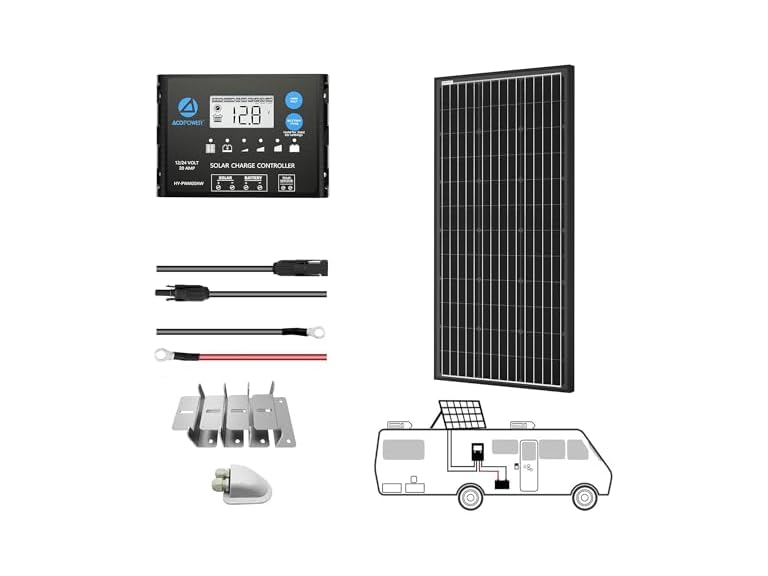

  • (1) ACOPOWER 100 Watt Solar Panel
  • (1) 20A Controller
  • (1) Cable Entry Housing
  • (1) Mounting Z Bracket and Cables
