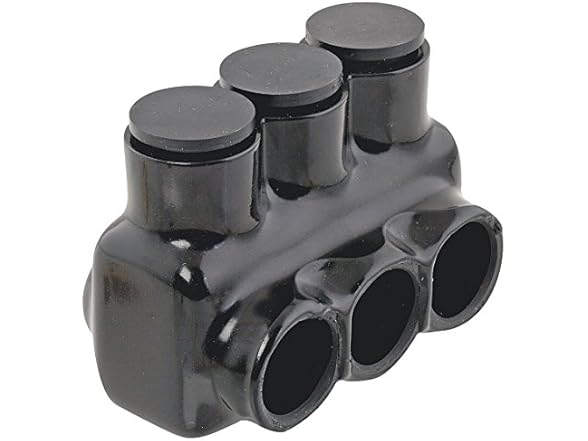

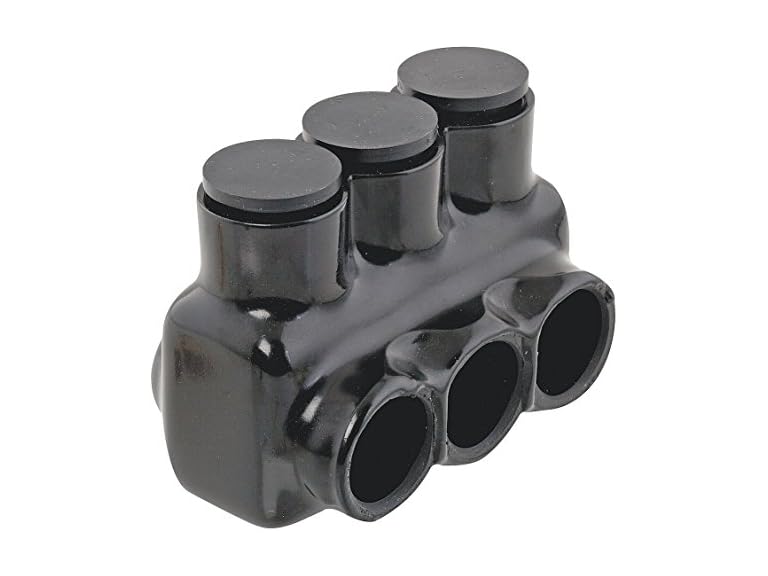

The Polaris IPL250-3B 3-Port Single-Side Connector provides the simplest solution for forming a secure connection between up to three conductors in applications including cable trays, panel boards, ducts, raceways or troughs. Sized for 250 MCM - 6 AWG wires and rated for 600V, this pre-insulated connector comes pre-loaded with an oxide inhibitor and ins9talls faster than traditional uninsulated connector options using just a hex key and torque wrench. The aluminum alloy body is wrapped in high-dielectric strength plastisol insulation, which is ergonomically molded to offer a comfortable grip, in addition to being resistant to abrasion, chemicals and UV rays. All-in-one design saves time and supplies on each job by eliminating the need for cover and taping; simply brush the conductors clean, strip back their insulation, insert one conductor into each port and secure the covered pressure screws. The IPL250-3B connector is rated for a 90 degrees Celsius operating temperature and dual rated for use with copper and/or aluminum cables, up to max AMP ratings of 290 and 230 respectively. Polaris pre-insulated connectors are available in a range of port numbers and configurations to fit the needs of any job, including UL-listed parallel configurations. Polaris: the original pre-insulated connector and still the brand most asked for by name.
- COMFORTABLE HANDLING/GRIP: Contractor-friendly ergonomic design with smooth edges and rounded corners provide a secure grip for maximum torque
- FAST INSTALLATION: Only a hex key and torque wrench needed; no need for extra tools and insulating tape
- HIGH-QUALITY CONSTRUCTION: Insulated with high dielectric strength plastisol for increased chemical and abrasion protection; 6061-T6 aluminum alloy construction
- RELIABLE: Removable plugs ensure secure entry port closure while preventing debris from entering connector
- WIRE TYPE: Dual-rated for use with copper and/or aluminum Class B or C building code class conductors
