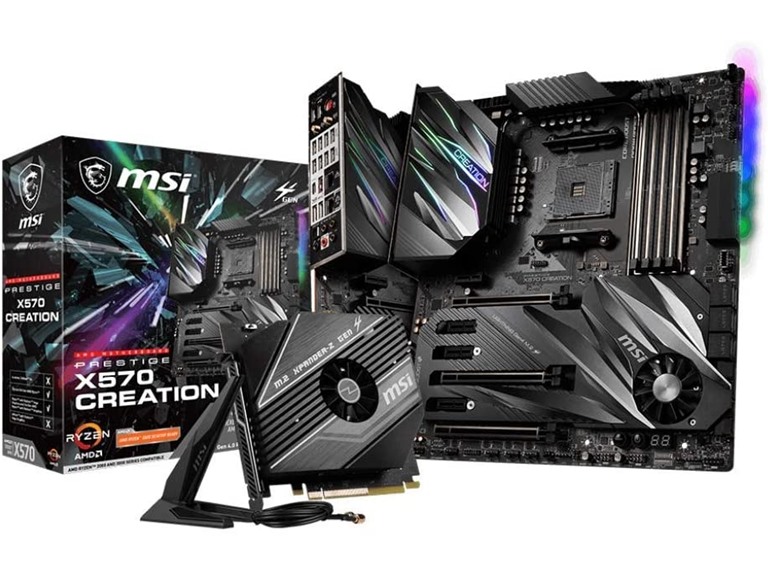

MSI Prestige Creation AM4 AMD Motherboard
Features
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
WIFI 6
The latest wireless solution supports MU-MIMO and BSS color
technology, delivering speeds up to 2400Mbps.
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to
provide best performance for enthusiast gamers and prosumers.
Extended Heat-Pipe Design
Enlarge the surface of heat dissipation, connecting from MOS
heatsink to chipset heatsink.
Creator Center
An optimized software with various system modes and resources
for a wide range of scenarios and needs.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
10G Super LAN
Next level network speed, secure networking with fastest data
throughput to improve efficiency
Shipping Note: Shipping to Alaska and Hawaii is not available for this item. A physical address is required for delivery. No Military or PO Box shipments available.
Warranty: 90 Day Woot Limited Warranty
Specs
Specifications
| CPU Socket | Socket AM4 |
|---|---|
| CPU Support | Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors |
| Chipset | AMD X570 |
| Form Factor | E-ATX |
| DDR4 Memory Support | 4x DDR4 memory slots, support up to 128GB |
| PCIe x16 Slots | 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5) - 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5) - 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 mode - 2nd Gen AMD Ryzen™ support PCIe 3.0x16/x0, x8/x8 mode - Ryzen™ 4000 G-Series support PCIe 3.0x16/x0, x8/x8 mode - Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with - Radeon™ Graphics support PCIe 3.0 x8/x0 mode 1x PCIe 4.0/3.0 x16 slot (PCI_E7, supports x4 mode) 4x PCIe 2.0 x1 slots |
| Storage | 4x SATA 6Gb/s ports (SATA1-SATA4) 2x M.2 slots (Key M) - M2_1 slot (from AMD® Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™ Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) 2242/2260/2280 storage devices - M2_2 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices |
| Back I/O Ports | (1) PS/2 Combo Port (2) USB 2.0 Ports (1) USB 3.2 Gen2 Type-A (1) USB 3.2 Gen2 Type-C (8) USB 3.2 Gen1 Ports (2) USB 3.2 Gen1 Type-A (1) LAN Port (1) 10G LAN Port Intel Wi-Fi 6 Clear CMOS Button HD Audio Connectors Optical S/PDIF OUT |
| Item model number | 7C36-002R |
| Manufacturer | MSI |
| Dimensions | 12 in. x 10.7 in. (30.5 cm x 27.2 cm) |
| Operating System | Support for Windows® 10 64-bit |
Additional information here.
In the Box:
- (1) MSI PRESTIGE X570 CREATION Motherboard
