CHANCS Outer Diameter 100mm Single
13 days left or until sold out
Retail Price: $24.50 (+15%)
Features

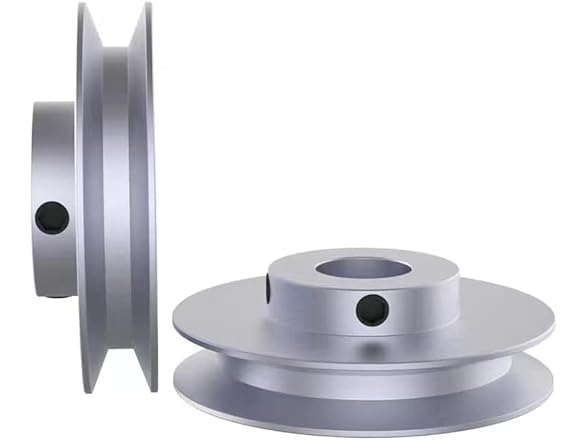

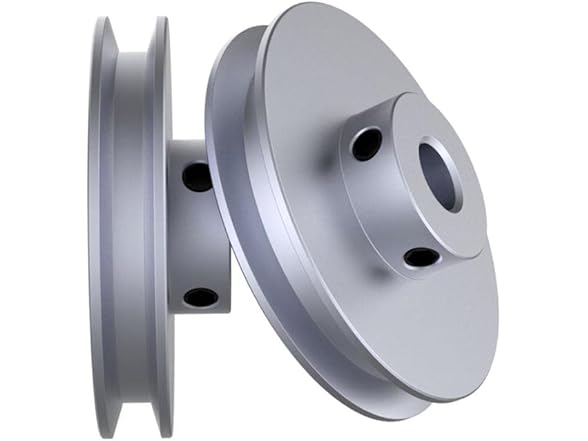

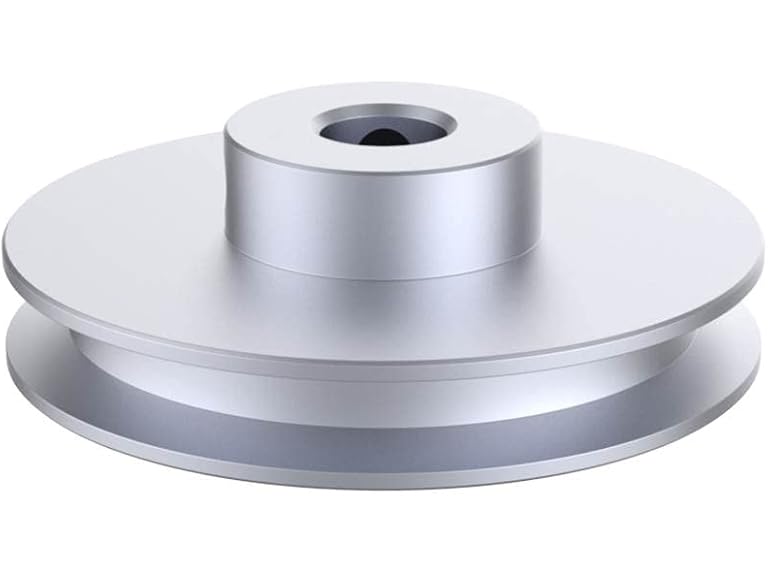

- Description:The inner hole of the pulley is accurate in size, formed with one knife, runs smoothly, and has high concentricity.Suitable for round belts, large contact area, non-slip and more durable.

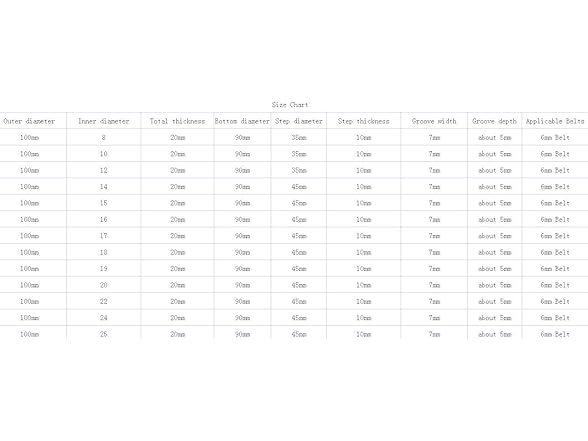

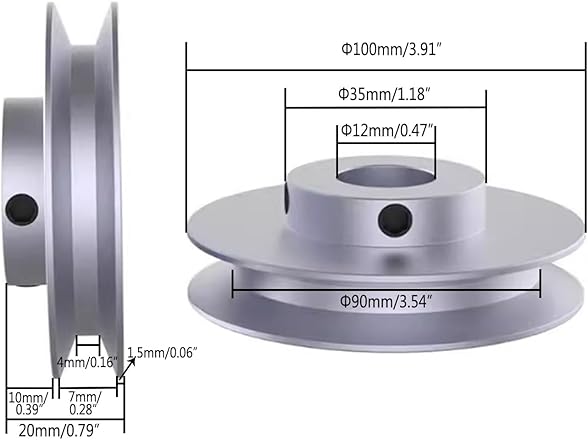

- Specification:Outer Diameter:100mm,Inner Diameter:12mm,Overall Thickness: 20mm,Step diameter: 35mm ,Step thickness: 10mm,Groove Bottom Diameter:90mm,Groove Width:7mm,Groove Depth: about5mm,Applicable Belts:6mm belt.
- Package Content: 1Pulley
- Application:Mainly used in motor, mini spindle, model transmission design, motor shaft transmission, etc.
- Attention:Pulleys with an outer diameter of 16mm and pulleys with other specifications are not suitable for use together. Pulley selection: first measure the diameter of the shaft to be installed, such as the shaft diameter of 8mm, and the pulley with an inner diameter of 8mm. This size will not be large or small, and the installation is just right.
Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item
Warranty: 90 Day Woot Limited Warranty
Specs
| Specifications | |
|---|---|
| Included Components | NO |
| Item Diameter | 100 millimeters |
| Item Weight | 7.1 ounces |
| Model Number | V-Belt-Pulleys |
| Number of Items | 1 |
| Part Number | BP022100073512 |
| Size | Outer diameter:100mm |
| Style | Inner diameter:12mm |
| UNSPSC Code | 24101600 |
| Brand Name | CHANCS |
