Phidgets MOT0110_0 - PhidgetSpatial

6 days left or until sold out

Buy for $97.99

Retail Price: $139.99 (+30%)

https://forums.woot.com/t/2237658

Features

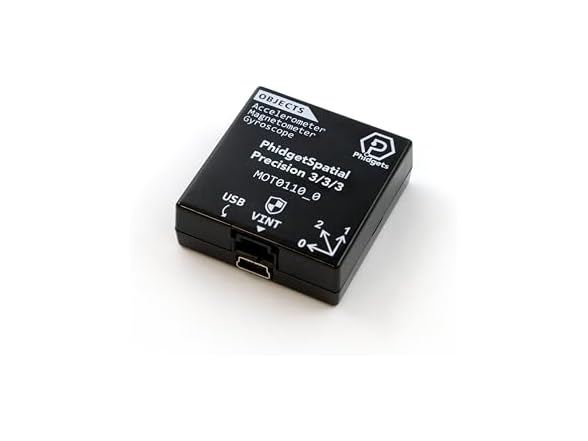

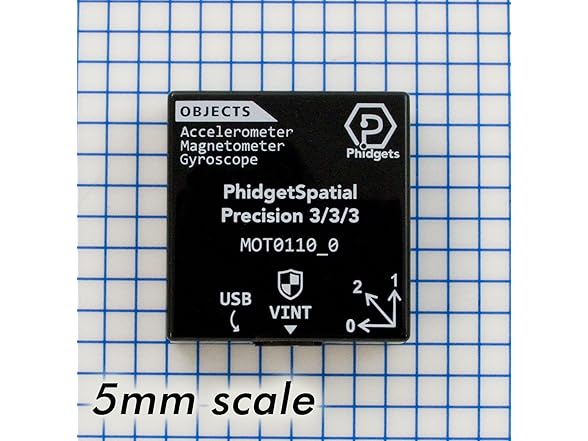

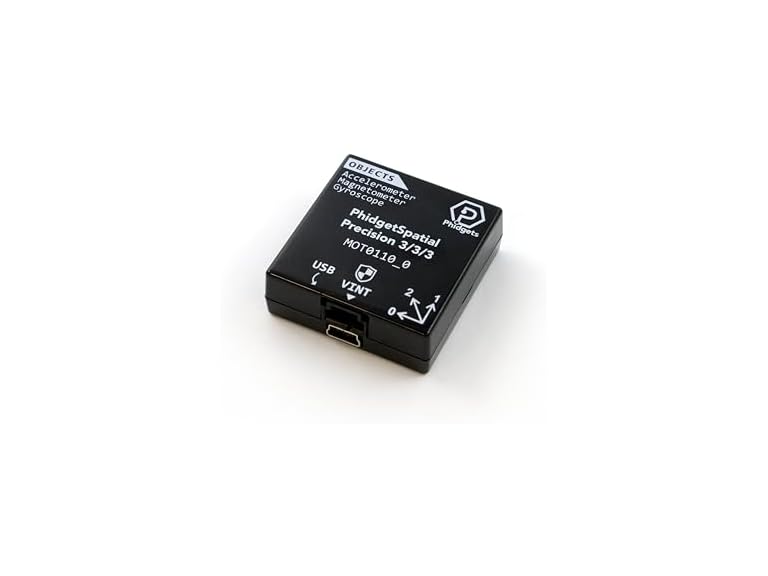

The PhidgetSpatial Precision 3/3/3 combines the functionality of a 3-axis compass, a 3-axis gyroscope, and a 3-axis accelerometer all in one convenient package. You can use the Spatial channel to use all three sensors with the AHRS or IMU algorithms to get motion data in quaternions for accurate spatial tracking. Or, you can use the data from each of these sensors separately to measure tilt, vibration or rotation of an object. This PhidgetSpatial also features a temperature stabilization circuit to warm the sensors to a constant 50°C to minimize temperature effects.

3-axis accelerometer (±16g)
3-axis gyroscope (±2000°/s)
3-axis magnetometer (±8G)
Accurate timestamp for plotting or advanced calculations
Built-in support for AHRS and IMU algorithms

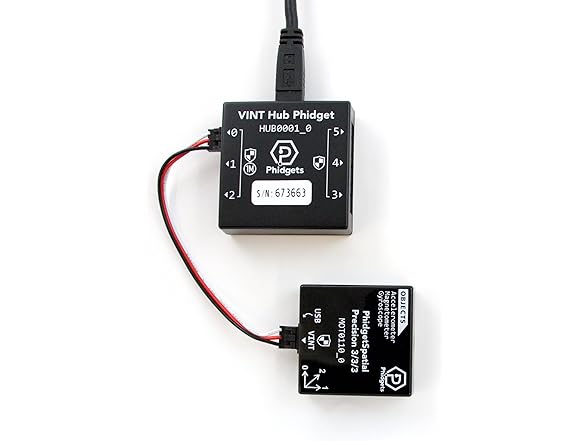

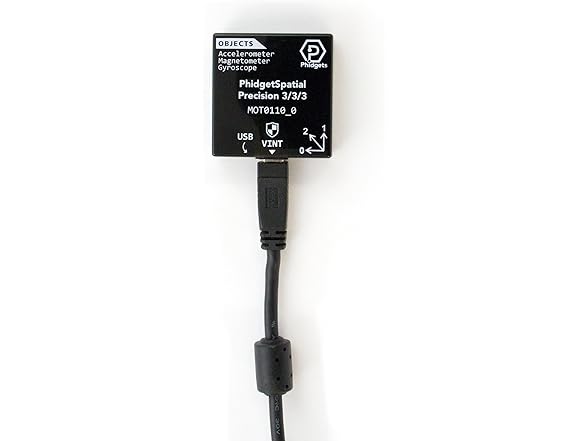

Connect via USB cable or through a VINT Hub
Cable not included. Please purchase a USB Mini-B or Phidget cable separately if needed.

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

Specs

Specifications
Brand Name	Phidgets
Ean	0810151154664
Included Components	MOT0110_0
Material	Copper
Maximum Supply Voltage	5.3
Measurement Accuracy	High
Model Number	MOT0110_0
Mounting Type	Flange Mount
Number of Items	1
Output Type	USB
Part Number	MOT0110_0
UNSPSC Code	41111900
UPC	810151154664

In the Box:

(1) Phidgets MOT0110_0 - PhidgetSpatial
