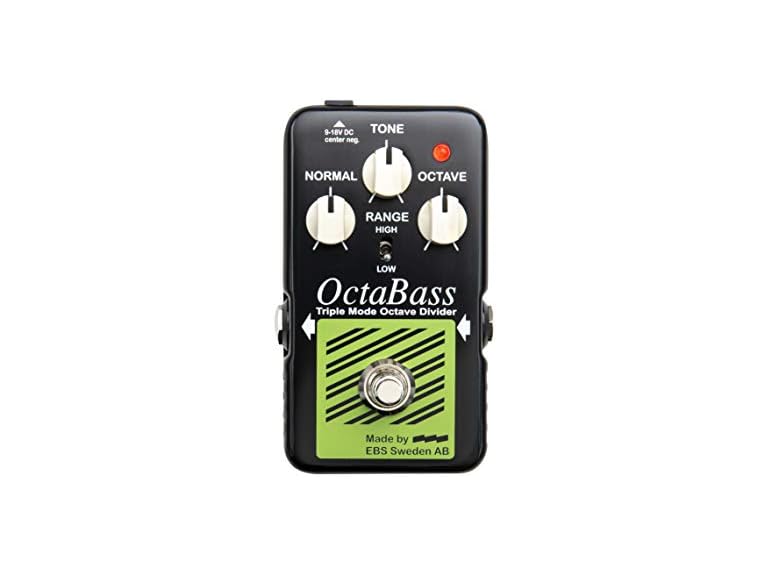

EBS Triple Mode Octave Divider Pedal

• Octave Divider Effects Pedal f Bass
• with High/Low Tracking Range Switch

• Nominal Input Level: -10 dBv

• Input Impedance: 1.8 Mohms

• Output Impedance: 100 ohms

• Dry Bandwidth +0/-2 dB: 20 - 20k Hz

• Dry Level min/max: -oo / 0 dB

• Octaver Level Gain min/max: -oo / 12 dB min

• Octaver Tone Filter:
  Type Low Pass
  Slope >18 dB/octave
  Range 60 - 350 Hz

• Triggering Threshold: -70 dBv @200 Hz

• Dimensions: W x H x D 2.6” x 4.5” x 1.9”
  (67 x 115 x 48 mm)

• Weight: 315g (0.7 lb.)

• Type: Analog Effect, Relay type Switching

• Power Requirements: 9, 12 or 18 V DC, 40 mA max. Pedal shuts off below 6.0 V

Shipping Note: Shipping to Alaska, Hawaii, P.O. Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

• (1) EBS OctaBass Blue Label Triple Mode Octave Divider Pedal
