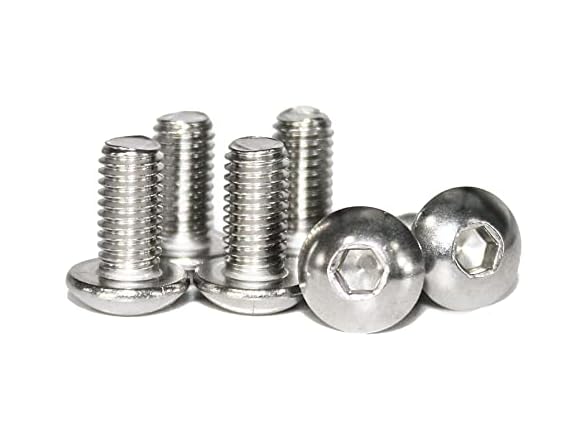

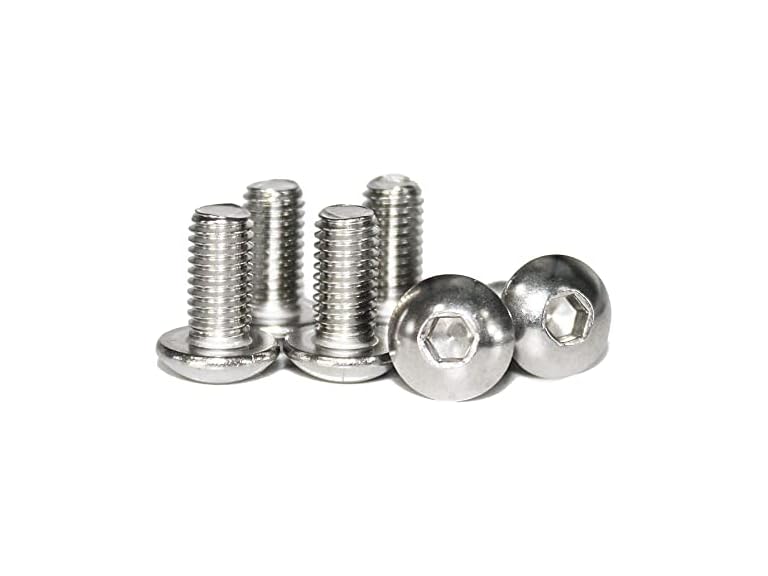

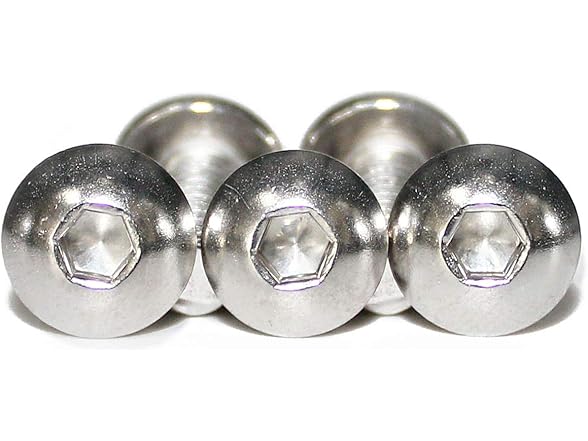

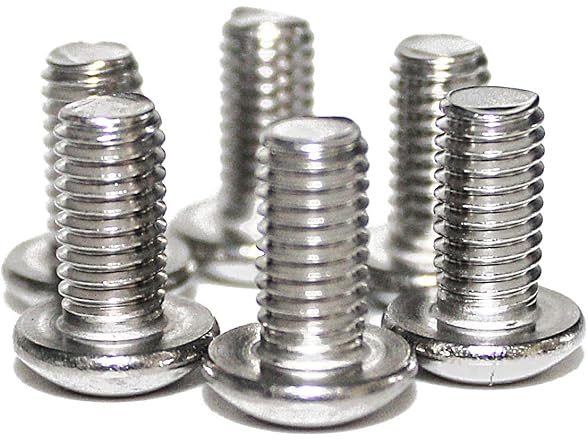

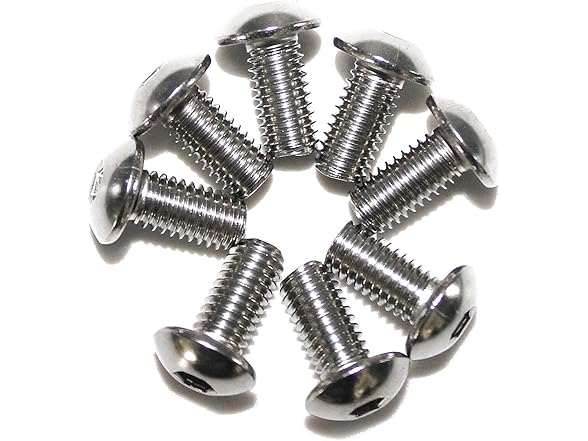

Button Head Hex Drive Screw
Passivated 18-8 Stainless Steel, M3 x 0.50 mm Thread, 5mm Long
✔ Thread Size------M3
✔ Thread Pitch------0.5 mm
✔ Length------5 mm
✔ Threading------Fully Threaded
✔ Head Diameter------5.70 mm
✔ Head Height------1.65 mm
✔ Drive Style------Hex
✔ Drive Size------2 mm
✔ Material------Passivated 18-8 Stainless Steel
✔ Hardness------Not Rated
✔ Tensile Strength------70,000 psi
✔ Thread Type------Metric
✔ Thread Spacing------Coarse
✔ Thread FitClass------ 6g
✔ Thread Direction------Right Hand
✔ Head Type------Rounded
✔ Rounded Head Style------Button
✔ Rounded Head Profile------Standard
✔ System of Measurement------Metric
✔ RoHS------Compliant

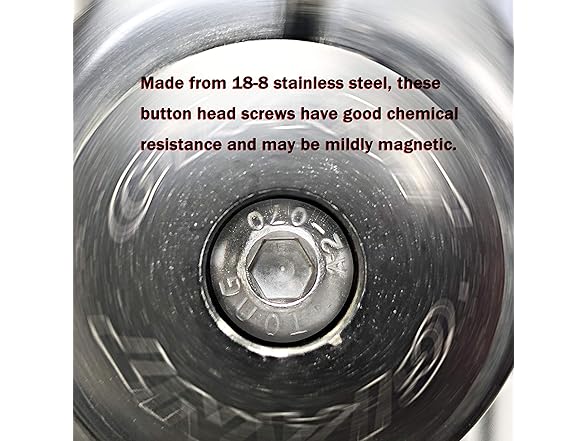

Made from 18-8 stainless steel, these button head screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.
Passivated stainless steel screws provide added protection against oxidation and corrosion.

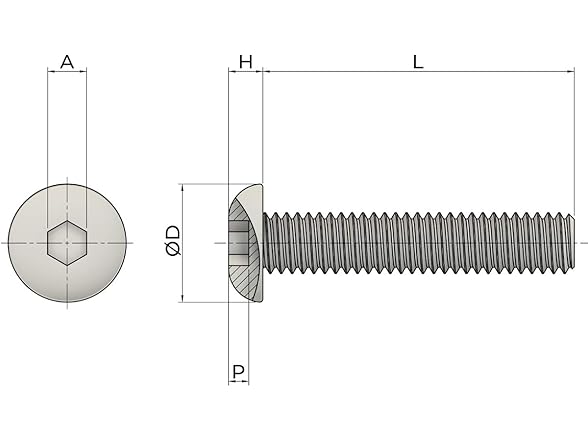

- M3 Metric Thread Size (3mm)
- A2 Stainless Steel, also known as 18-8 or 304 Stainless Steel.
- Thread Size: M3 (3mm)
- Length (L): 5 mm
- Hexagon Socket A/F (A): 2mm
