ENIANHUA Mini Industrial 5 Port Switch

9 days left or until sold out

Buy for $9.83

Retail Price: $16.39 (+40%)

https://forums.woot.com/t/2151481

Features

Product Specification: 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function 1-port SFP/ 1000Base-X Standards: IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x. Ports x speed: 5 x RJ-45 10/100/1000Mbps. Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex Supports 802.3x Flow control Supports large backplane bandwidth and large switching cache to ensure all ports forward at wire speed. Support international standard IEEE 802.3D/W/S standard STP/RSTP/MSTP protocols Support PoE power supply function (optional). Industry standard design, dustproof and close design IP40, rugged high-strength metal case Minimum System Requirements: Connected devices need Ethernet connectivity and Ethernet cables. Temperature Range: Operating Temperature：-40°C to 80°C (-40°F to 176° F) Storage Temperature： -40°C to 85°C (-40°F to 185°F) Voltage Range: 85V~250V AC power input It's great to adapt unstable working voltage Installation Method: Din-Rail or Wall-Mount Easy to install switch on the din-rail rack mount and wall Compact Size: Only need small space to install Casing Material: Industrial grade components and aluminum housing (Waterproof grade: IP40) Applications: 6-port ethernet switch Mini industrial 6 ports gigabit ethernet switch can be used in the field of video surveillance and network solution Package Contents -ENIANHUA 6-Port Gigabit Unmanaged Ethernet Switch x1 -Quick Start Guide x1 -Wall-Mount Kit x1

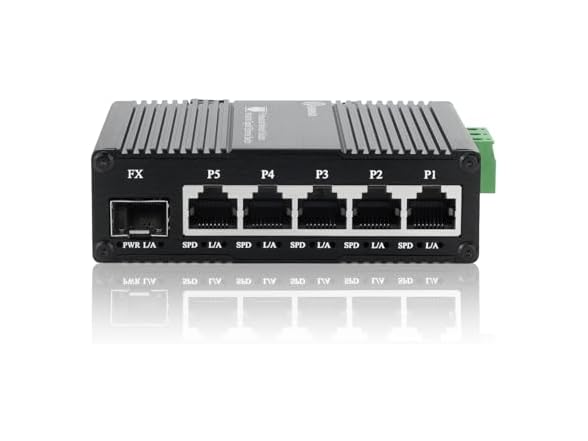

【6 Port Ethernet Switch】The ENIANHUA network switch includes 5 x 10/100/1000M RJ45 ports, 1 x 1G SFP Port (Compatible 155M/1G Optical Module Module, not include SFP Module), making it easy to connect multiple devices. Ports 1-5 Compliant IEEE802.3az (EEE) standard, support 10/100/1000M adaptive, supporting Auto Negotiation and Auto MDI/MDIX.

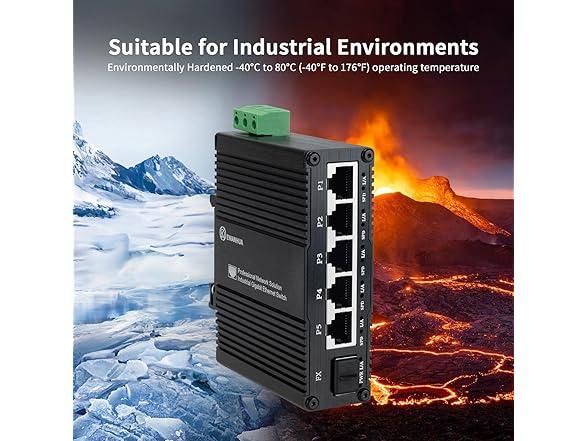

【Industrial Grade Quality】This industrial Ethernet Switch is IP40 protection grade and 6KV lightning protection, this industrial SFP switch operates from -40°C to 75°C(-40°F to 167°F) and meets rigorous industrial standards, making it ideal for extreme weather and environments.
【Stable Transmission】All ports on this ENIANHUA Ethernet Switch support full line-rate non-blocking switching with automatic MDI/MDIX crossover. It boasts a 14Gbps backplane bandwidth, providing ample bandwidth for large-scale data transmission. Additionally, this Ethernet Switch support Jumbo Frame transmission, with a maximum frame size of 9216 bytes, significantly improving the efficiency of high-volume data transfers.

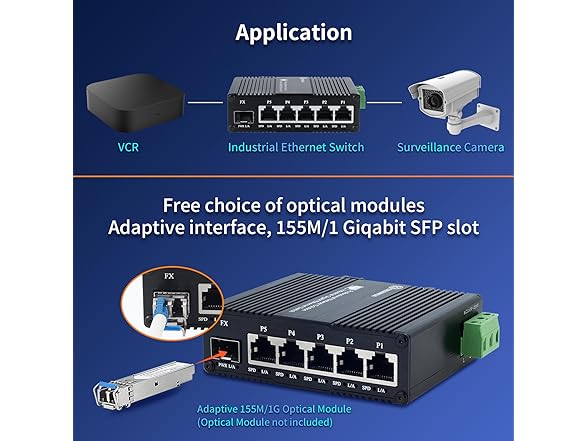

【Auto Sensing Port】All ports are 10/100/1000Mbps, adaptive full-duplex. Supports AC85V~250V wide voltage power input, providing stable and reliable Ethernet transmission. The open SFP ports of fiber switch support both 155Mbps and 1.25G SFP module, it means you can use other device with 100M or 1000M fiber port on the other side. You can insert an RJ45 electrical port module to add a Gigabit port or insert an optical fiber module to convert into optical signals.

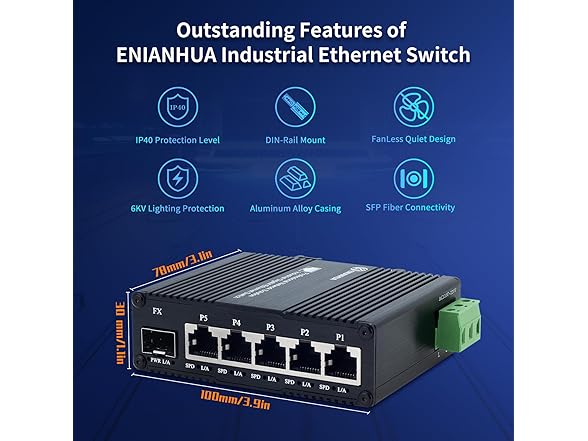

【Flexible Mounting options】 The ENIANHUA Mini Network Switch measures only 3.9 x 1.1 x 3.1 inches. And Designed for easy installation, this mini switch supports DIN rail and wall-mount options, allowing for versatile setups in both industrial and outdoor applications.

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

Specs

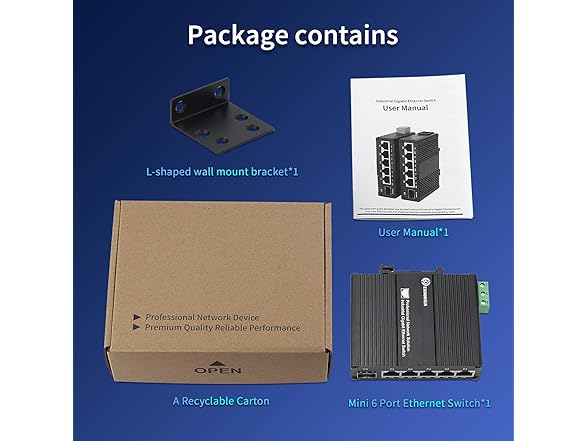

In the Box:

(1) ENIANHUA Mini Industrial 5 Port Fiber Ethernet Switch 10/100/1000Mbps with 100/1000M Adaptive SFP Slot Unmanaged Network Switch 14Gbps Switching Capacity 85~250V AC Power Input Din Rail & Wall Mount
