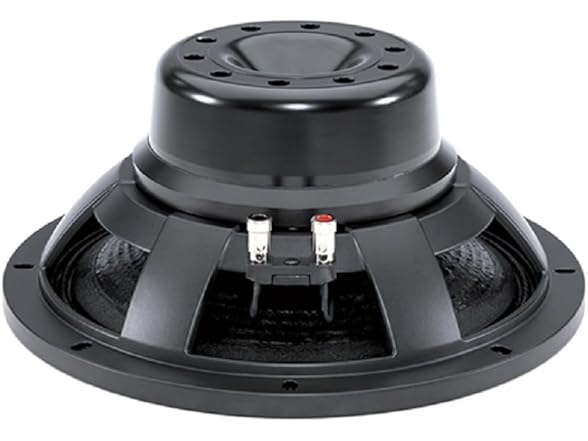

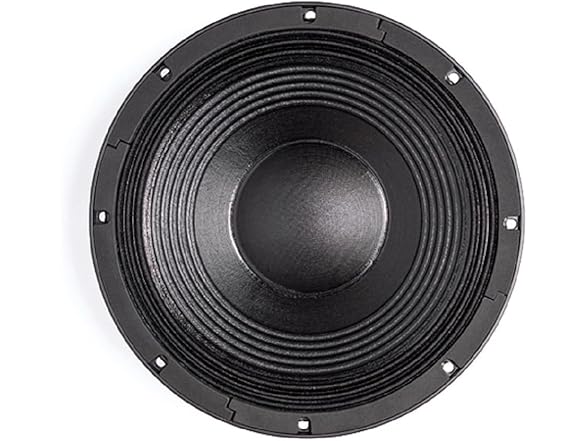

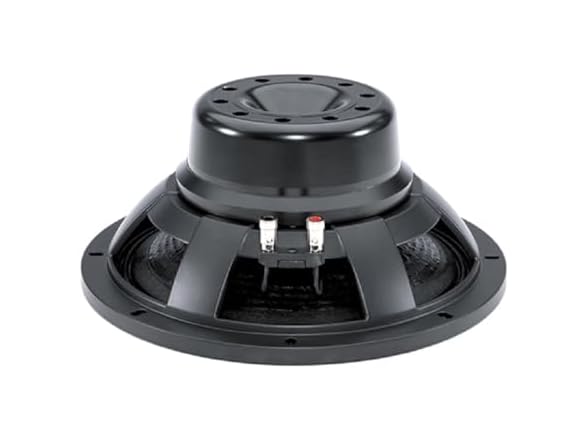

B & C Speakers 12 inch NEO Woofer

4 days left or until sold out

Retail Price: $399.99 (+63%)

Share on Facebook Share on X Share on Reddit

Copy Link

https://forums.woot.com/t/2379035

Features

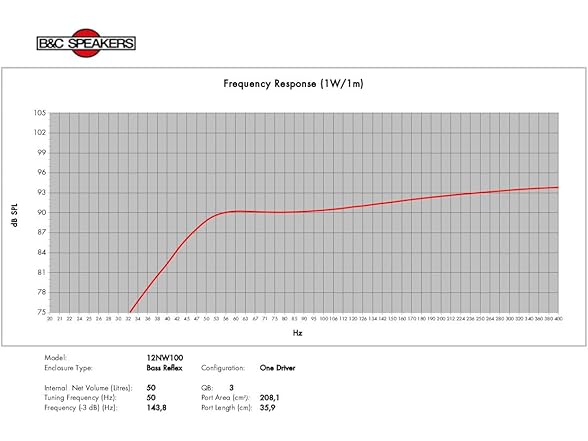

The B&C Speakers 12NW100-8 is a high-performance 12-inch neodymium woofer designed for professional audio applications. It features an 8-ohm neodymium inside slug magnet and a robust 100 mm (4 in) copper voice coil, delivering up to 2000 watts of continuous program power. With a frequency response of 45 to 1500 Hz and a sensitivity of 96 dB, it ensures dynamic and efficient low-frequency output. The driver incorporates an FEA-optimized magnet assembly, a double silicone spider for enhanced compliance, and a ventilated voice coil gap to minimize power compression. Its triple roll surround and radial cone shape contribute to smooth excursion, while the TWP-treated cone is waterproof on both sides. Key specifications include a nominal diameter of 320 mm, minimum impedance of 6.2 ohms, and a flux density of 1.2 Tesla. The coil is wound on a glass fibre former with a 25 mm winding depth and a 12 mm magnetic gap. Recommended for enclosures of 50.0 dm³ (1.77 ft³) tuned to 50 Hz, the driver has a resonance frequency of 42 Hz, Qts of 0.2, and a Vas of 44.0 dm³. It supports ±9.0 mm Xmax and ±10.0 mm Xvar excursion, with a moving mass of 119 g and a Bl factor of 28.0 Txm. Mounting dimensions include a 319 mm overall diameter, 299 mm bolt circle, and 281 mm baffle cutout, with a depth of 137 mm and flange thickness of 13 mm. The driver occupies 2.7 dm³ (0.09 ft³) of air volume, weighs 8.2 kg (18.0 lb), and ships in a 360×360×200 mm box with a total shipping weight of 9.1 kg (20.06 lb).

This speaker driver offers 2000 watts of continuous power and features a 100 mm copper voice coil for effective heat management. With a 45–1500 Hz frequency range and 96 dB sensitivity, it delivers strong low-frequency output. Its design includes a neodymium magnet optimized via FEA, a double silicone spider for stability, and a ventilated coil gap to reduce power compression for reliable performance.
This 12-inch speaker driver offers powerful low-frequency performance with 2000 watts of continuous power handling, 96 dB sensitivity, and a 45–1500 Hz frequency range. It features an 8-ohm impedance, a 100 mm copper voice coil on a glass fibre former, and a 1.2 Tesla flux density for precise sound control. Its deep 25 mm winding and 12 mm magnetic gap enhance thermal and magnetic efficiency.
This speaker driver features a triple roll surround and radial cone shape for enhanced excursion and sound dispersion. It uses a neodymium inside slug magnet and T-pole design for efficient magnetic control. The double silicone spider ensures stable cone movement, while the TWP-treated woofer cone is waterproof on both sides. For optimal performance, it is recommended to use a 50.0 dm³ (1.77 ft³) enclosure tuned to 50 Hz.
This speaker driver is tuned for efficient low-frequency performance with resonance frequency of 42 Hz & a large 531 cm² cone area. It has a DC resistance of 5.1 Ω & a low Qts of 0.2, making it ideal for vented enclosures. With ±9.0 mm Xmax & ±10.0 mm Xvar, it supports deep excursion, while its 119 g moving mass & strong 28.0 Txm motor provide tight control. The driver offers 1.7% efficiency, a compliance volume of 44.0 dm³, & an EBP of 200 Hz, confirming its suitability for ported designs.

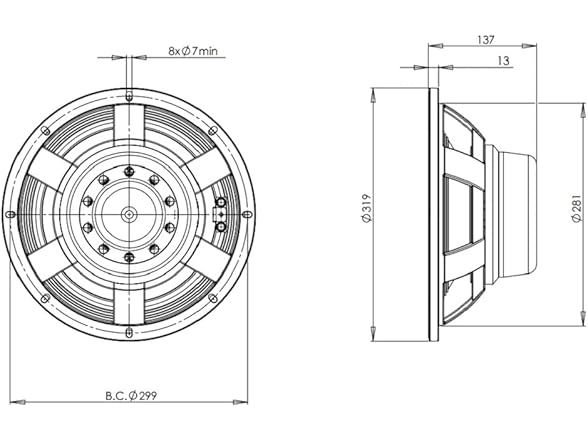

This 12.5-inch speaker driver is compact and easy to install, featuring an 11.8-inch bolt circle and an 11.1-inch baffle cutout. It has a mounting depth of 5.4 inches and a flange thickness of 0.5 inches. The driver occupies just 0.09 ft³ of air volume, weighs 18.0 lb, and ships in a 14.17×14.17×7.87 inch box with a total shipping weight of 20.06 lb.

Shipping Note: Shipping to Alaska, Hawaii, and PO Boxes is not available for this item

Warranty: 90 Day Woot Limited Warranty

Specs

In the Box:

B & C Speakers 12 inch NEO Woofer
