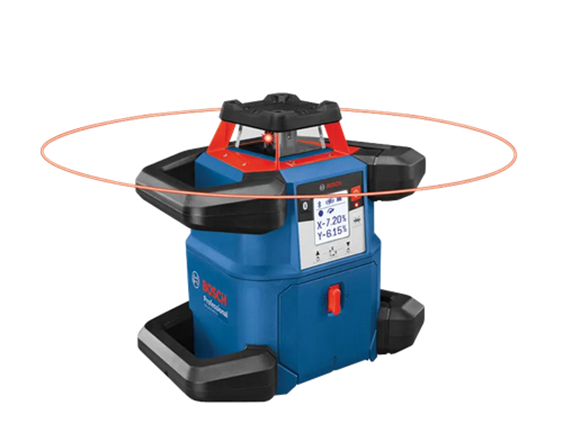

Bosch GRL4000-80CH-RT REVOLVE4000 Rotary Laser

The Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal Rotary Laser with uCAL user-calibration delivers a comprehensive solution for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. This laser is powered by a Bosch CORE18V® 4 Ah battery, providing extended runtime. The rotary laser is compatible with 4 Ah and 8 Ah Bosch CORE18V® Li-ion batteries. It also features an alkaline adapter to use four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth® connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more. The rotary laser features uCAL, for user-calibration, taking the user step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate. It delivers accuracy of ±1/16 In. at 100 Ft., and a range of up to 4,000 Ft. with laser receiver.

• Fully featured rotary laser – has Dual Dial-In Slope, CORE18V® power, Bluetooth® connectivity, uCAL user-calibration and more

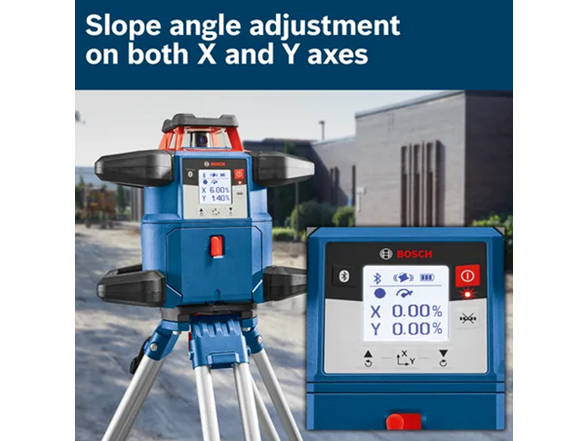

• Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
• Dual power source – for extended runtime and option of a 4 Ah CORE18V® battery or a battery adapter with four (D) cell batteries
• Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
• Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more

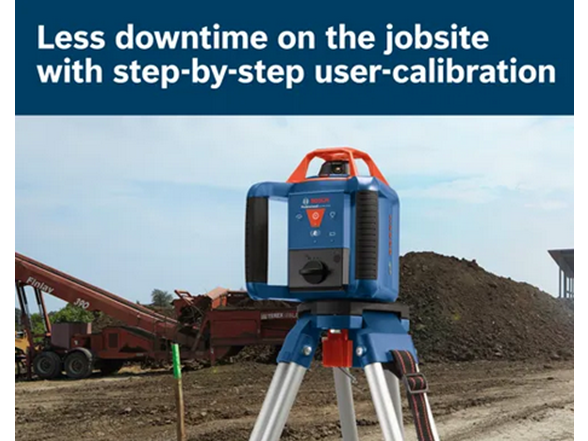

• uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
• Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of ±1/16 In. at 100 Ft.
• Electronic self-leveling – allows for easy setup and use on the job
• Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy

Bosch Warranty

Shipping Note: Shipping to Alaska, Hawaii, and PO Boxes is not available for this item

• Bosch GRL4000-80CH-RT REVOLVE4000 Horizontal Rotary Laser Certified Refurbished

Battery
Lithium-Ion Battery
Height in
11 "
IP Rating
IP 68
Laser Beam Color
Red
Laser Diode
Class II 635 nm, < 1mW
Length in
12.8 "
Leveling Type
Self-Leveling, Up to 5°
Material
Plastic Composite
Mount Threading
5/8-11
Operating Temperature
14° F / -10° C ~1 22° F / 50° C
Range
Up to 4,000-ft.
Weight
8.2 lb
Width in
7.4 "
Works With
Laser Receivers, LR40, Tripods, BT160, BT170HD, BT300HD, Grade Rod, GR500, GR16, Batteries, GBA18V40, GBA18V80, Chargers, GAL18V-40, GAL18V-160C, GAL18V6-80, BC1880, GAX1218V30

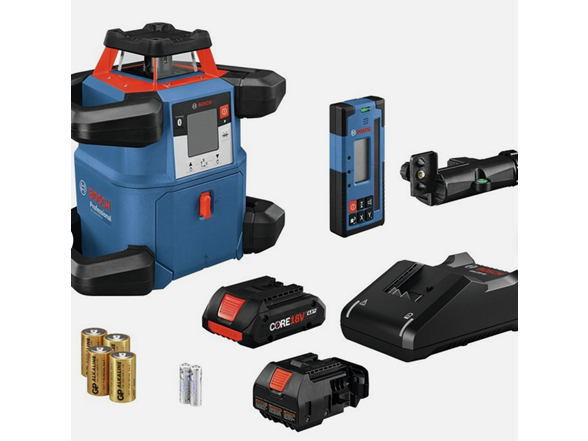

Includes
(1) GRL4000-80CH 18V REVOLVE4000 Connected Self-Leveling Horizontal Rotary Laser
(1) LR40 Laser Receiver with Bracket
(1) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery
(1) 18V Battery Charger
(1) BA1 Alkaline Battery Adapter
(4) D Batteries
(2) AA Batteries
(1) Carrying Case
