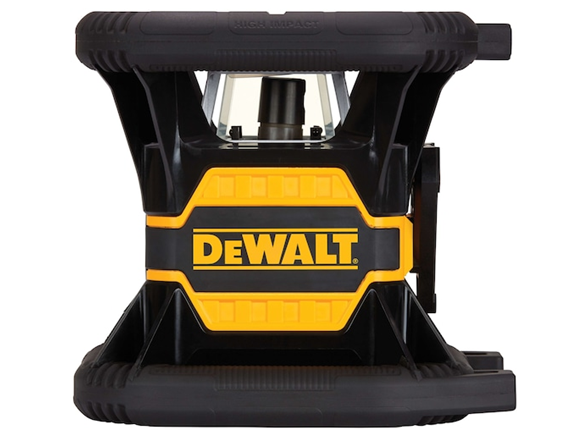

Dewalt DW080LGS 20V MAX Tool Connect Rotary Laser

With an IP67 debris/water resistance rating, 1 meter drop protection, and a highly-visible green beam, the 20VMAX* Tool Connect™ Green Beam Rotary Tough laser equips users to work in the toughest conditions. Connect this rotary to our Tool Connect™ app to track the device, and receive bump, fall, and drop indications, as well as slope and line direction.

DW080LGS-Instructional Manual - Type 1

Dewalt Warranty

Shipping Note: Shipping to Alaska, Hawaii, and PO Boxes is not available for this item

In the Box:

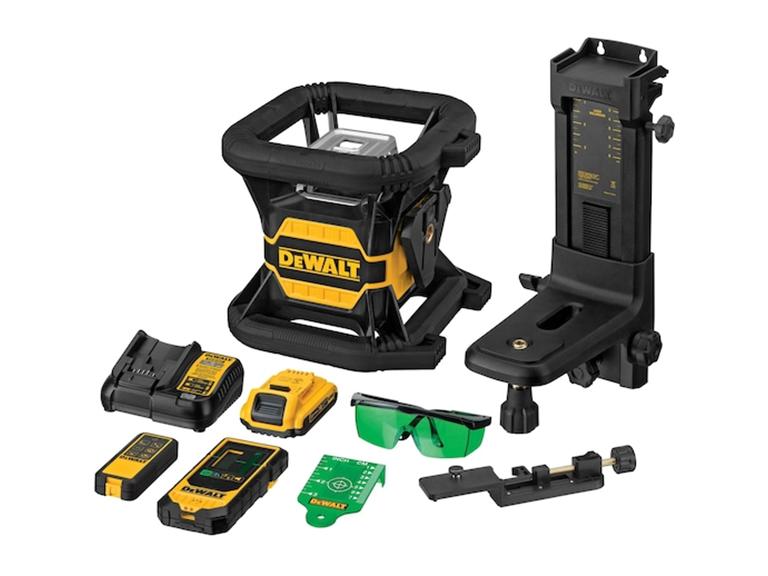

(1) Dewalt DW080LGS 20V MAX Tool Connect Green Tough Rotary Laser Kit Includes

• Rotary Laser
• Detector
• TSTAK Storage Case
• 5/8" Bracket Adapter
• 20V Max Battery
• 20V Max Charger
• Enhancement Glasses
• Target Card
• Ceiling Bracket
• Detector Bracket
• 5/8" Tripod Adapter

Details

• Manufacturer    DeWalt
• Condition    New
• Features
•     Connect to the DeWalt Tool Connect app via Bluetooth technology
•     Dual axis slope mode for added functionality
•     Up and down plumb dots
• Application     Excavators, Drywallers, Masons
• Type     Rotary Laser
• Corded or Cordless     Cordless
• Voltage     20 V
• Nominal Voltage     18 V
• Water and Dust Resistant     Yes
• Laser Protection  Rating     IP67
• Detector Protection Rating     IP54
• Scan Mode     15, 45 and 90 Deg
• Laser Wavelength     515-530nm and 630-680nm
• Laser Power and Class     ≤ 5 mw and Class 3R
• Speed (RPM)     150, 300, 600 and 1200 RPM
• Indoor Visibile Range     250'
• Range with Detector     2000'
• Leveling Accuracy at 600 RPM     ± 1/16" per 100'
• Operating Temperature     14 Deg F to 122 Deg F
• Storage Temperature     -4 Deg F to 158 Deg F
• Detector Accuracy (High)     ±1mm at 30m
• Detector Accuracy (Low)     ±2mm at 30m
• Detector Power Source     Micro USB DC 5 V
