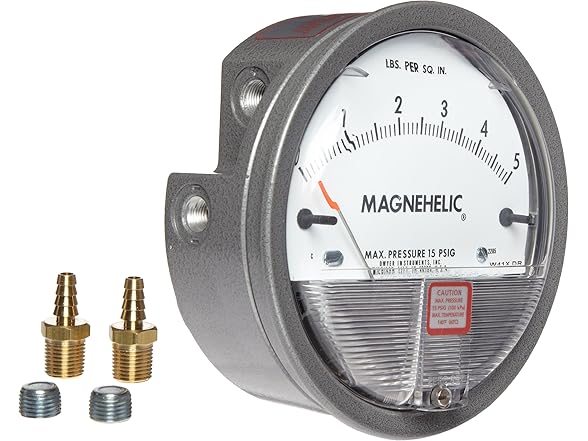

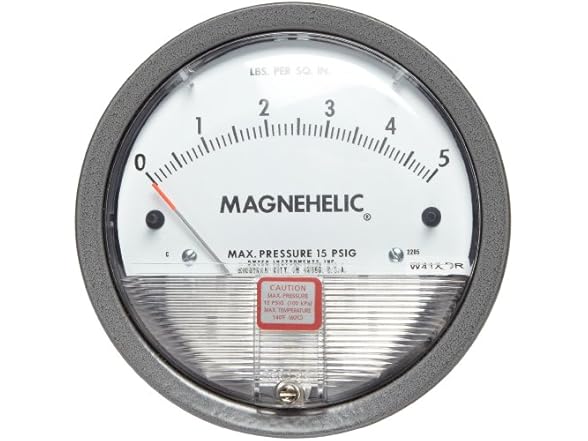

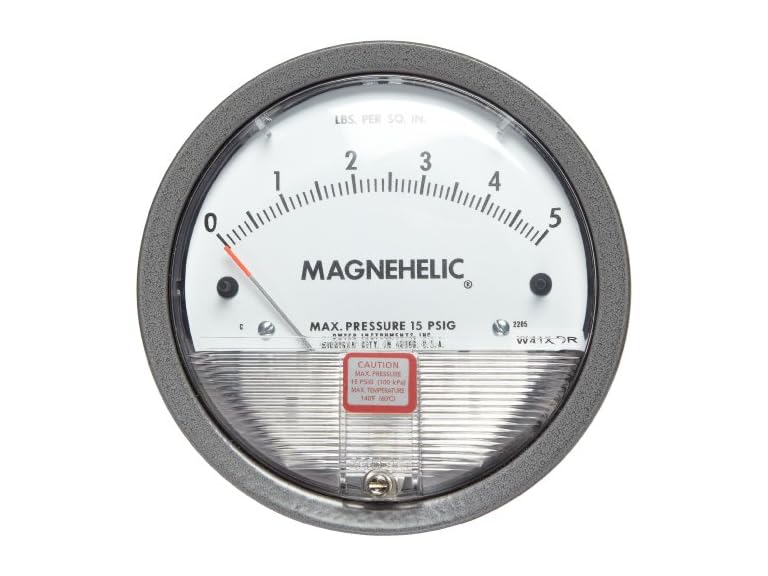

Magnehelic Differential Pressure Gage

13 days left or until sold out

Retail Price: $91.70 (+23%)

Features

Select the Magnehelic gage for high accuracy--guaranteed within 2% of full scale--and for the wide choice of 81 models available to suit your needs precisely. Using Dwyer's simple, frictionless Magnehelic gage movement, it quickly indicates low air or non-corrosive gas pressures--either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems. It's inexpensive, too.

MANUFACTURER DIRECT
Service: Air and non-combustible, compatible gases. (Natural Gas option available.)
Pressure Limits: -20 in Hg. to 15 psig; Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

Specs

Specifications
Brand Name	Dwyer
Ean	0629768527873
Item Weight	1.20 pounds
Material	Aluminum
Maximum Measurement	0-5 psi
Measurement Accuracy	+/-2%
Model Number	2205
National Stock Number	6685-00-988-8974
Number of Items	1
Part Number	2205
Range	0-5 psi
Size	0-5 psi
Style	Vertical
Temperature Range	20/140 degrees_fahrenheit
UNSPSC Code	25191800
UPC	629768527873

In the Box:

(1) Dwyer Magnehelic Differential Pressure Gage, 2205,: 0-5 psi
