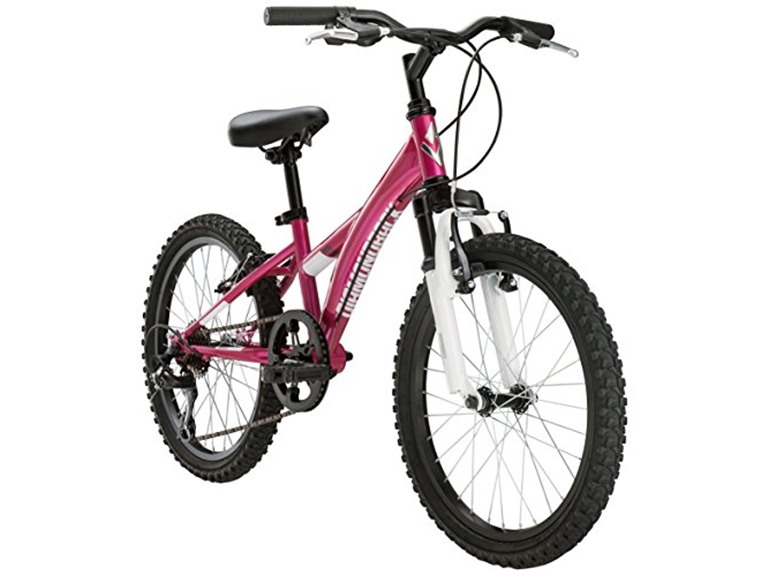

Diamondback Tess 20" Youth Bike
6 days left or until sold out
Retail Price: $240 (+17%)
Features
- Shimano 6-speed drivetrain with trigger shifter makes shifting simple, giving little ones a boost on climbs
- Hl Zoom 40mm travel fork soaks up rocks and roots just like on a bike for Big kids
- Linear pull brakes have adjustable-reach levers to keep them safe and in control
- Package Weight: 15.785 kilograms
Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item
Warranty: 90 Day Woot Limited Warranty
Optional Asurion Protection Plan: To further protect your purchase, you can buy an Asurion protection plan from Amazon here. Review the FAQs for additional information.
Specs
| Specifications | |
|---|---|
| Frame | DB Hi-Ten Jr Girl's 20" Mountain Frame |
| Fork | HL Zoom 20" Suspension, 40mm Travel |
| Headset | Threaded 1" |
| Cranks | 140mm One-piece Steel, 40 Tooth w/ Double Guard |
| Bottom Bracket | Loose Ball |
| Rear Derailleur | Shimano Tourney TY300, 7 Speed |
| Shifter | Shimano M310, 7 Speed |
| Cogset | Shimano TZ21, 7 Speed Freewheel, 14-28T |
| Chain | KMC Z51, 7 Speed |
| Front Hub | 32h Steel Nutted |
| Rear Hub | 32h Steel Nutted, Freewheel |
| Spokes | 14g Steel |
| Rims | 32h Alloy |
| Tires | Jr ATB Knobby, 20x2.0" |
| Brakes | Alloy Linear Pull |
| Brake Levers | Alloy Linear Pull w/ Reach Adjust |
| Pedals | Resin MTB, 1/2" |
| Handlebar | Steel Jr Riser |
| Grips | DB Kraton |
| Stem | Steel Quill |
| Seat | Jr. ATB 2-panel |
| Seatpost | Steel Pillar, 25.4mm |
| Extras | Owners Manual, Assembly Guide, Tool Kit* |
Sizing:
| Bike Size | Girls/20" Age 4-9 - Height 44"-54" | ||||
|---|---|---|---|---|---|
| Seat Tube Length | 280mm | ||||
| Stand Over Height | 486mm | ||||
| Top Tube Length | 465mm | ||||
| Stack | |||||
| Reach | |||||
| Head Tube Length | 100mm | ||||
| Head Angle | 70° | ||||
| Seat Angle | 71° | ||||
| Wheel Base | 885mm | ||||
| Chain Stay Length | 381mm | ||||
| Fork Offset | 37mm | ||||
| BB Drop | |||||
| Stem Length | 80mm | ||||
| Handlebar Width | 520mm | ||||
| Crank Length | 140mm | ||||
| Seat Post Length | 280mm |
