NIBCO - NLN10XH W910B-LF/W960B-LF
13 days left or until sold out
Retail Price: $767.85 (+30%)
Features

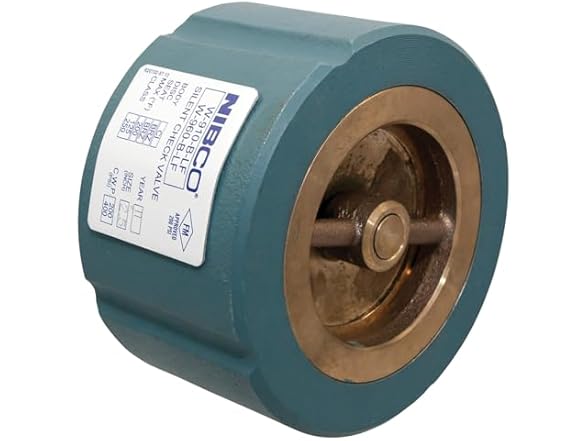

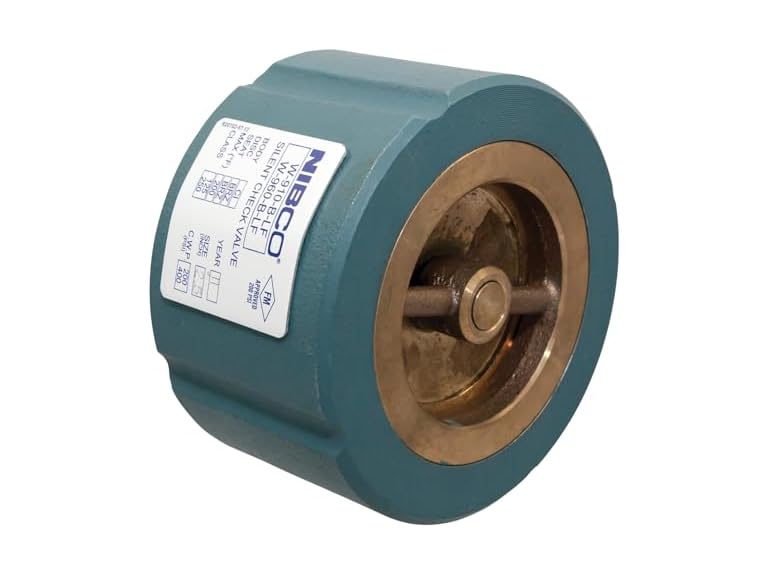

- The NIBCO lead-free wafer style silent check valve is spring actuated with renewable bronze seat and disc; The spring return reduces noise for quiet operation
- Check valves prevent backflow by automatically closing when fluid reverses direction; The check valve is recommended for commercial and industrial water applications
- Lead Free refers to the wetted surface of pipe; fittings and fixtures in potable water systems that have a weighted average lead content ≤ 0.25% per the Safe Drinking Water Act (Sec. 1417) amended
- Renewable bronze seat and disc; Spring actuated (1/2 psi cracking pressure); Class 125 wafer end connections
- The check valve is recommended for commercial and industrial water applications
Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item
Warranty: 90 Day Woot Limited Warranty
Specs
| Specifications | |
|---|---|
| Body Material | Cast Iron |
| Brand Name | NIBCO |
| Color | Teal |
| Connector Type | Wafer |
| Ean | 0039923326959 |
| Exterior Finish | Bronze |
| Fits Pipe Size | 4 inches |
| For use with what product? | Piping Systems |
| Global Trade Identification Number | 00039923326959 |
| Included Components | Check Valve |
| Inlet Connection Size | 4 inches |
| Inlet Outside Dimensions | 4.5 inches |
| Item Weight | 17.14 pounds |
| Manufacturer Series Number | W-910-B-LF |
| Material | Cast Iron |
| Maximum Operating Pressure | 175 pounds_per_square_inch |
| Maximum Working Pressure | 200 pounds_per_square_inch |
| Measurement System | US |
| Model Number | T480YLF114 |
| Number of Items | 1 |
| Number of Ports | 2 |
| Outlet Connection Size | 4 inches |
| Outlet Connection Type | Flange |
| Part Number | NLN10XH |
| Seal Material Type | Bronze |
| Size | 4 inches |
| Specification Met | Conforms to Mss Sp-125 , FM , Nsf/Ansi 61 and Nsf/Ansi 372 |
| Thread Diameter | 4 inches |
| UNSPSC Code | 40141600 |
| UPC | 039923326959 |
| Warranty Description | NIBCO INC. warrants each NIBCO pressure rated metal valve to be free from defects in materials and workmanship under normal use and service for a period of five (5) years from date put into service. |
- (1) NIBCO - NLN10XH W910B-LF/W960B-LF
