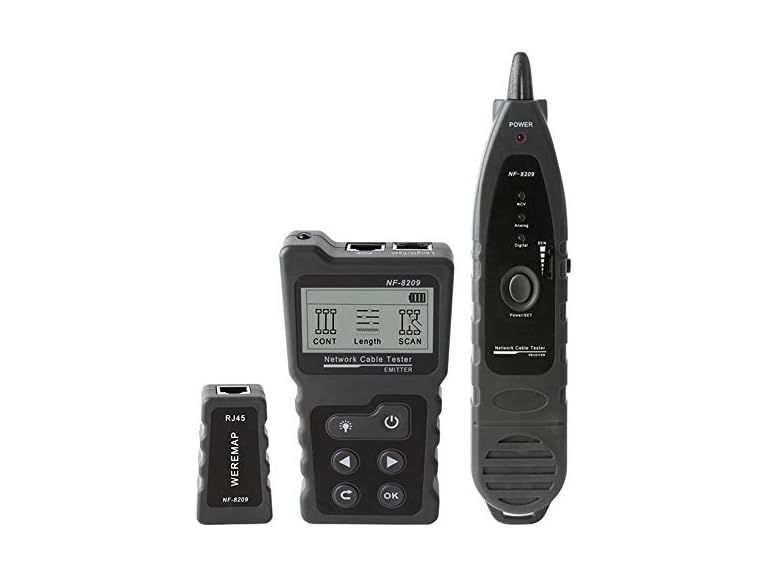

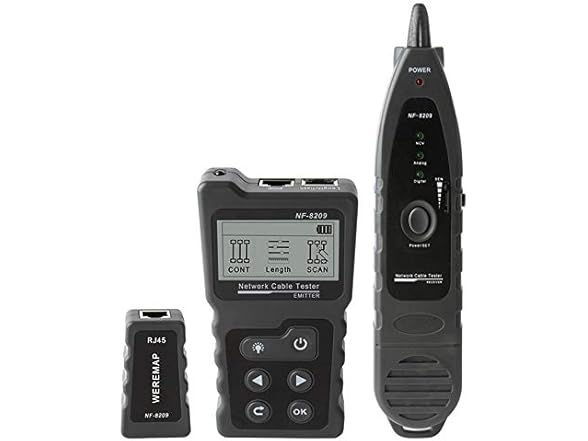

NOYAFA Network Cable Tester NF-8209 Wire Tracker

12 days left or until sold out

Buy for $35.24

Retail Price: $50.34 (+30%)

Share on Facebook Share on X Share on Reddit

Copy Link

https://forums.woot.com/t/2380260

Features

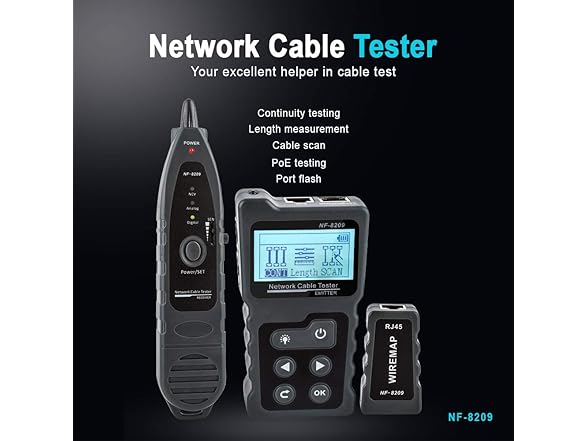

NF-8209 is a new generation to offer digital and analog signaling all in one network toner and probe. It has three modes for options to track cable like digital mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers. Product Operation 1. CONT-- Test open, short, cross,ect for STP, UTP cable. 2. Length--measure length of lan cable, range is 2.5m~200m. 3. Scan--Analog/Digital/ PoE mode to locate lan cables. 4. PoE-- available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type. 5. Flash--locate network port by the flashing port light on switch/ router. 6.Setting: Set language, backlight time, auto-off time, contrast and version. Specification: Item Name: Network Cable Tester Material: ABS Transmitter function : wiremap, length test, cable scan, PoE testing, port flash, lighting function. Cable type: CAT5e,CAT6,CAT6a(STP&UTP) Transmitter parameter: LCD display with backlight power supply: AAA battery*3 (not included) Low battery warning:2.7V Auto-off time:15/30/60min/OFF Voltage protection:DC 48V 5mA Max working current:<150mA Size:130*70*28mm Reciver parameter: Sensitivity adjustable AC voltage detecting lighting function power supply:9V*1pc(not included) Low battery warning:6+-0.5V Max working current:<100mA Size:210*43*27mm Remote: wiremap port:RJ45 Voltage protection:DC 48V 5mA Size:65*37*23mm Package Includes: 1 x Transmitter 1 x Receiver 1 x Remote Adapter 1 x Earphone 1 Set of Cable Adapters 1 x Carry Bag 1 x User Manual

[Network cable scanning] Three scan modes selectable: Digital model/ Analog mode/ PoE mode.

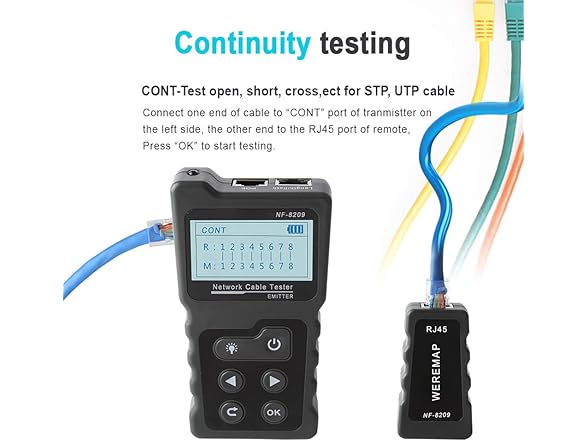

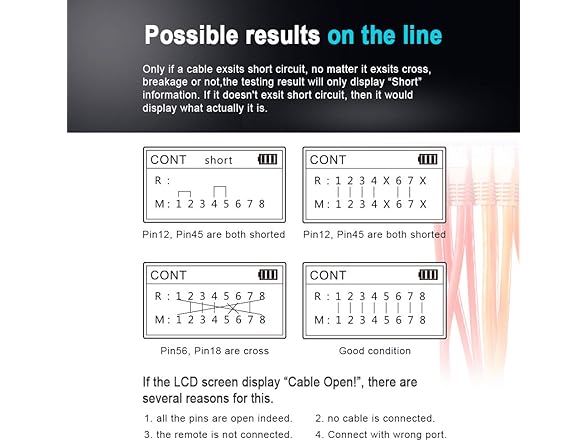

[Cable continuity testing] Test physical status for STP, UTP lan cable.

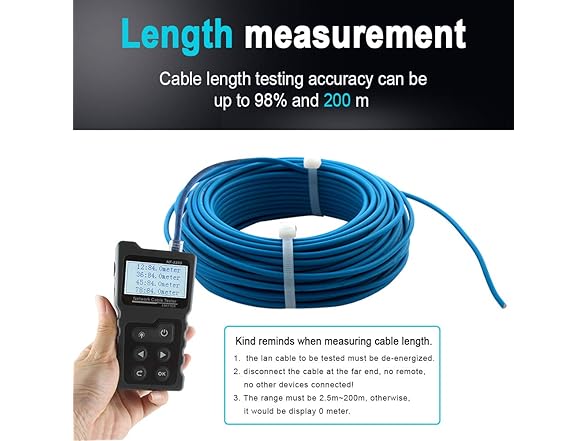

[Cable length measurement] Measure cable length and locate fault distance accurately for lan cable.The cable type is CAT5e,CAT6,CAT6a(STP&UTP). The test range must be 2.5m~200m.

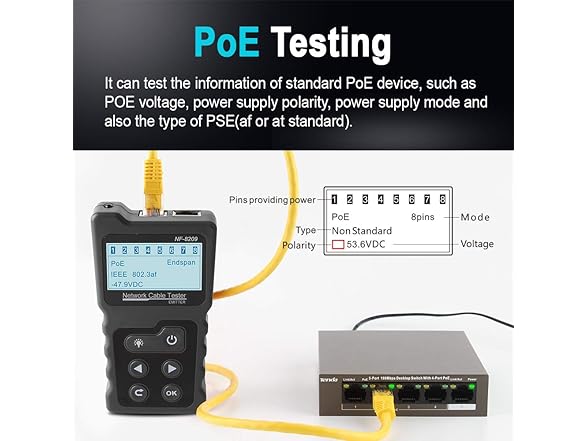

[PoE Testing & Port Flash] Test the information of PoE device, such as PoE voltage, power supply polarity, power supply mode. It can also identify which the type of PSE (at/af standard) If it is standard PoE device. If it is no-standard PoE device, it only display “non-standard”. Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.

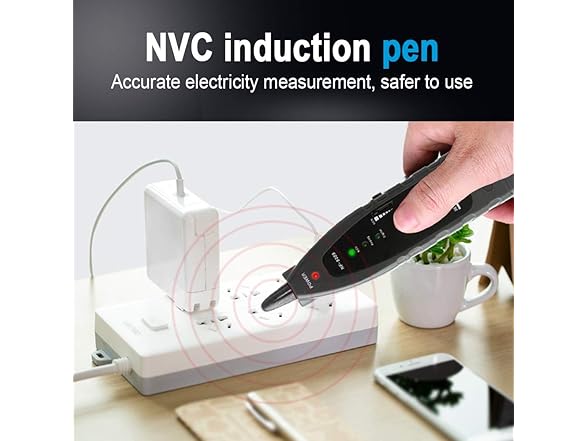

[Non-contact voltage detecting] Detect AC voltage presence (50V-1000V). You can press the "Power/Set" button on the receiver, if the "NCV”indicator is light on, then you can use the receiver to detect AC voltage presence.

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

Specs

Specifications
Brand Name	NOYAFA
Cable Length	32.8 feet feet
Color	Black
Compatible Devices	Router
Ean	0705554038744
Item Weight	15.5 ounces
Measurement Type	Network Cable Tester
Model Number	NF-8209
Part Number	NF-8209
Power Source Type	Battery Powered
Style	Digital
UNSPSC Code	43222600
UPC	705554038744
Voltage	9.0 volts

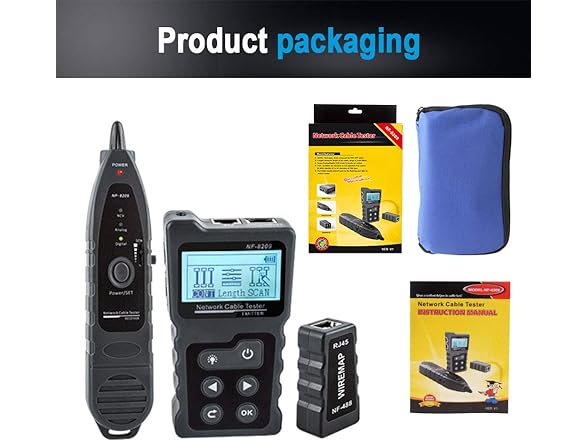

In the Box:

(1) NOYAFA Network Cable Tester NF-8209 Wire Tracker
