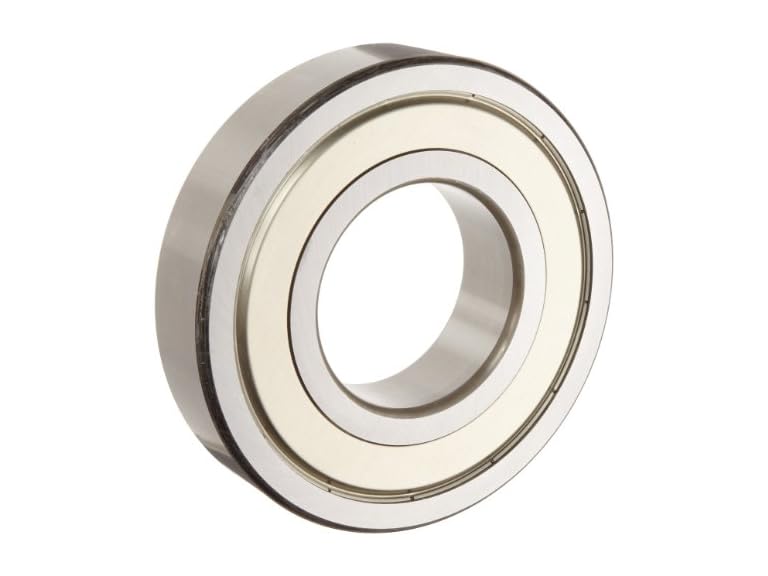

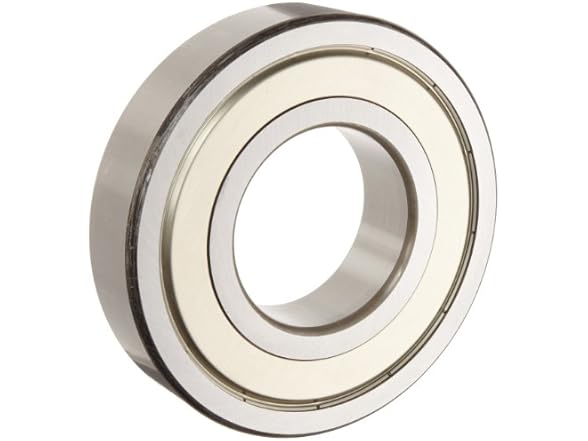

NSK 6205ZZC3 Deep Groove Ball Bearing
12 days left or until sold out
Retail Price: $8.41 (+19%)
Features
- Deep-groove geometry for high speeds and supporting both radial and axial loads
- Single-row bearing for supporting radial loads
- C3 radial internal clearance for radial slack between the inner and outer rings that is greater than CN (normal) to compensate for thermal expansion
- Pressed steel cage evenly spaces the balls for even load distribution and prevents contact to reduce friction, vibrations, and noise
- Shields on both sides of the bearing to keep lubricant in and contaminants out
Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item
Warranty: 90 Day Woot Limited Warranty
Specs
| Specifications | |
|---|---|
| Bearing Number | 6205ZZC3 |
| Bearing Type | Ball Bearing |
| Bore Diameter | 25 millimeters |
| Brand Name | NSK |
| Compatible Lubricant Type | Grease |
| Dynamic Load Capacity | 3147 pounds |
| Ean | 0029176014413 |
| Global Trade Identification Number | 00029176014413 |
| Item Diameter | 52 millimeters |
| Manufacturer Series Number | 6200 Series |
| Material | Alloy Steel |
| Maximum Rotational Speed | 13000 rpm |
| Measurement System | Metric |
| Model Number | 6205ZZC3 |
| Number of Items | 1 |
| Part Number | 6205ZZC3 |
| Specification Met | Nsk 6200 |
| Static Load Capacity | 1765 pounds |
| UNSPSC Code | 26110000 |
| UPC | 029176014413 |
| Width | 15 millimeters |
- (1) NSK 6205ZZC3 Deep Groove Ball Bearing, Single Row, Double Shielded, Pressed Steel Cage, C3 Clearance, Metric, 25mm Bore, 52mm OD, 15mm Width, 13000rpm Maximum Rotational Speed, 1765lbf Static Load Capacity, 3147lbf Dynamic Load Capacity
