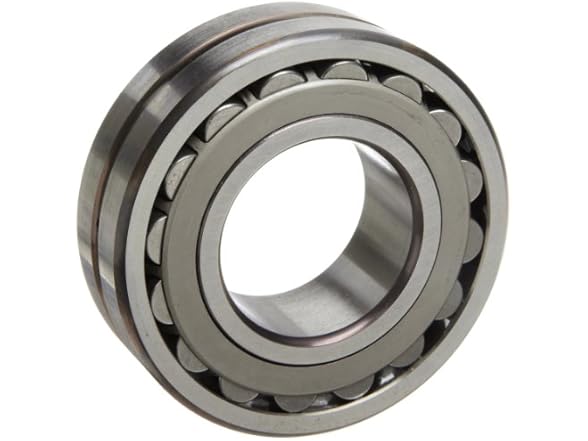

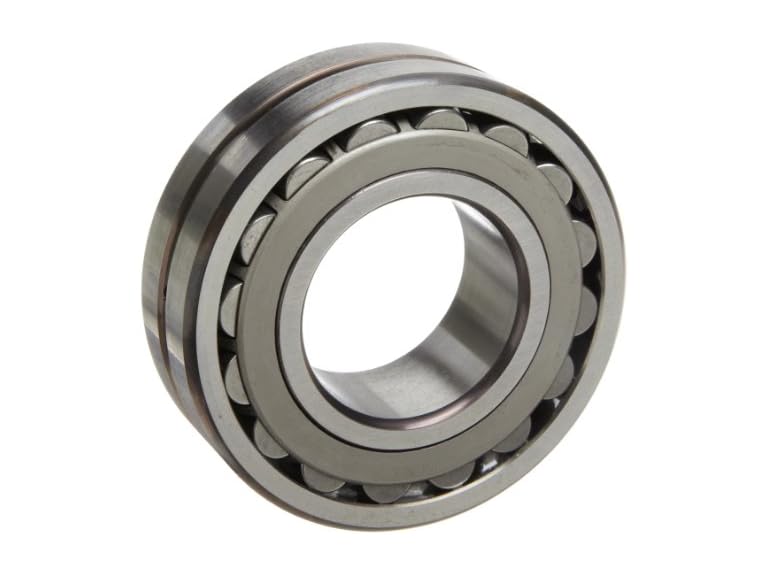

SKF 22216 E/C3 Explorer Spherical Roller
12 days left or until sold out
Retail Price: $177.93 (+29%)
Features
- Two row spherical roller bearing suitable for applications that support high radial and oscillating axial loads
- Two-piece pressed steel window-type cage has high wear resistance and spaces the rollers for even load distribution and prevents contact to reduce friction, vibration, and noise
- Flangeless inner ring with cage guide
- C3 radial clearance is larger than normal for applications where impact loads and vibration are severe, or thermal expansion is a factor
- Straight bore fits conventional cylindrical shafts
Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item
Warranty: 90 Day Woot Limited Warranty
Specs
| Specifications | |
|---|---|
| Bearing Number | 22216 |
| Bearing Type | Ball Bearing |
| Bore Diameter | 80 millimeters |
| Compatible Lubricant Type | Grease |
| Dynamic Load Capacity | 53100 pounds |
| Ean | 7316576652509 |
| Global Trade Identification Number | 07316576652509 |
| Item Diameter | 140 millimeters |
| Item Weight | 4.67 pounds |
| Maximum Rotational Speed | 6000 rpm |
| Measurement System | millimeters |
| Model Number | 22216 E/C3 |
| Number of Items | 1 |
| Outside Diameter | 140 millimeters |
| Part Number | 10092687 |
| Specification Met | Din 623-1 , Iso 281 , Iso 492 , Iso 683-17 , Din Iso 281 |
| Static Load Capacity | 60700 pounds |
| UNSPSC Code | 26111500 |
| Width | 33 millimeters |
| Brand Name | SKF |
| Material | Alloy Steel |
| Maximum Rotational Speed | 0 rpm |
| Measurement System | Metric |
| UNSPSC Code | 31171500 |
