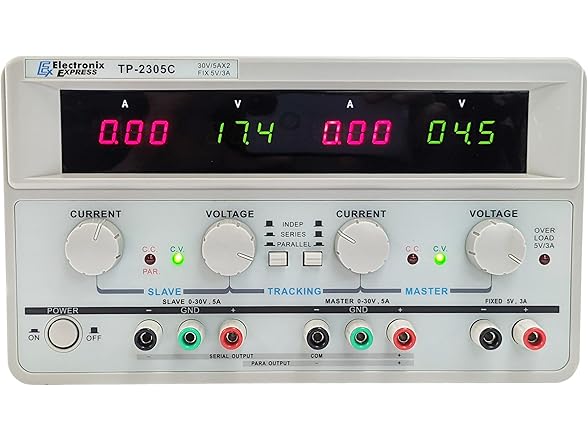

Triple Output Power Supply
12 days left or until sold out
Retail Price: $293.99 (+30%)
Features
- Dual adjustable outputs: 0-30V and 0-5A, Single fixed output: 5V and 3A
- The two outputs can be used either in independent, series or parallel mode, providing either two independent outputs, or one output with twice the voltage or twice the current output, up to 60V or 10A
- 4 color LED displays, providing accurate and clearly visible readout for the Voltage and Current value
- Line regulation: CV ≤ 0.01% + 2 mV, CC ≤ 0.2% + 2 mA
- Load Regulation: CV ≤ 0.01% + 3mV, CC ≤ 0.2% + 3 mA
Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item
Warranty: 90 Day Woot Limited Warranty
Specs
| Specifications | |
|---|---|
| Brand Name | EX ELECTRONIX EXPRESS |
| Compatible Devices | Personal Computer |
| Connector Type | ATX or Molex |
| Current Rating | 5 amps |
| Ean | 6952848605197 , 0859718004776 |
| Form Factor | ATX |
| Global Trade Identification Number | 00859718004776 |
| Height | 10.0 inches |
| Included Components | Triple Output Power Supply, Power Cord, User's Manual |
| Item Weight | 23.0 pounds |
| Length | 14.0 inches |
| Material | Metal |
| Maximum Input Voltage | 220.0 volts |
| Measurement System | US |
| Minimum Input Voltage | 110.0 volts |
| Model Number | HY3005F-3 |
| Number of Items | 1 |
| Part Number | 01HY3005F-3 |
| Specification Met | certified frustration-free |
| UNSPSC Code | 43210000 |
| UPC | 859718004776 |
| Voltage | 5 volts |
| Wattage | 165 watts |
| Width | 8.0 inches |
- (1) EX ELECTRONIX EXPRESS Triple Output Power Supply, Two 0-30V @ 0-5A; One Fixed 5V @ 3A, Quad LED Displays - Model TP-2305C by EX ELECTRONIX EXPRESS
