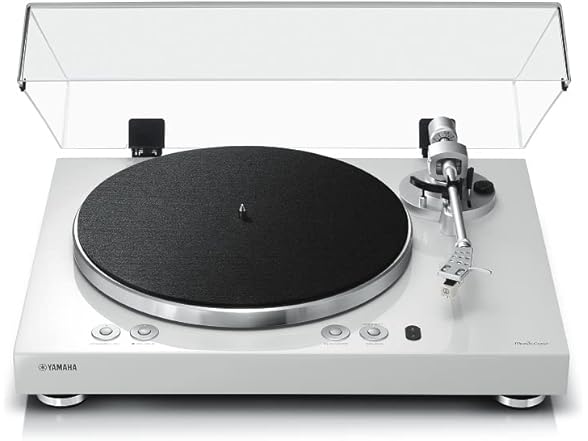

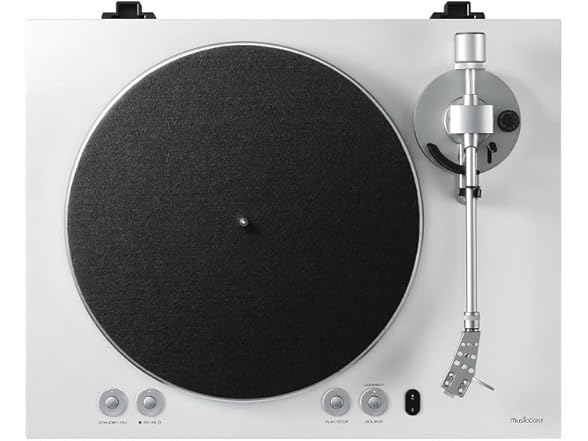

Yamaha TT-N503WH-RB Turntable
6 days left or until sold out
Retail Price: $899.95 (+41%)
Condition
Refurbished
Features
Yamaha TT-N503 MusicCast VINYL 500 Manual belt-drive turntable with Wi-Fi, Bluetooth and MusicCast. Connect to any audio system with built-in phono preamp also includes pre-mounted phonogragh cartridge. Gives an 'old-school' medium a modern spin, wirelessly connect the MusicCast VINYL 500 turntable to your MusicCast enabled receiver and other devices to enjoy your record collection without all the cables.
Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item
Warranty: 90 Day Woot Limited Warranty
Optional Asurion Protection Plan: To further protect your purchase, you can buy an Asurion protection plan from Amazon here. Review the FAQs for additional information.
Specs
| Network Section | |
| File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz |
| Ethernet | Yes |
| Wi-Fi | Yes (2.4 / 5 GHz) |
| AirPlay | Yes |
| Bluetooth Section | |
| Version/Profile | Ver. 4.2 / A2DP, AVRCP (Bluetooth is compatible with SCMS-T.) |
| Audio Codec | SBC, AAC |
| Maximum Communication Range | 32 ft. 10 in. (without interference) |
| Turntable | |
| Drive Method | Belt drive |
| Motor | DC motor |
| Rotation Speed | 33-1/3 rpm, 45 rpm |
| Rotation Speed Variation | ±2% |
| Wow And Flutter | 0.2% |
| Platter | Aluminium die-cast (Diameter 30 cm) |
| Output Level | 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec) |
| Signal To Noise Ratio | 67 dB or higher (A-weighted, 20 kHz, LPF) |
| Tonearm | |
| Tonearm | Static balance straight tonearm |
| Effective Arm Length | 223.5 mm |
| Overhang | 19 mm |
| Stylus Pressure Adjustment Range | 0-4 g |
| Acceptable Cartridge Weight | 15.5-19 g (including headshell) |
| Attached Cartridge | |
| Cartridge Type | MM type |
| Output Voltage | 2.5 mV (1 kHz, 3.54 cm / sec) |
| Stylus Pressure | 3.5 ± 0.5 g |
| Cartridge Weight | 5.0 ± 0.3 g |
| Cartridge Height | 17.0 ± 0.7 mm |
| Headshell Weight | 10 g (including screws, nuts and wires) |
| Audio Specifications | |
| Output Terminal | RCA: 2 (PHONO, LINE) |
| Output Level | 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz) |
| Signal to Noise Ratio | [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz) |
| Dynamic Range | 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz) |
| Harmonic Distortion | 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz) |
| Frequency Response | Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB) |
| General | |
| Power Consumption | 6 W |
| Eco-Standby (reference date) | 0.3 W |
| Standby Power Consumption | 1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired) |
| Dimension (W×H×D) | 17-3/4” x 5-3/8” x 14-1/2” |
| Weight | 12.6 lbs. |
