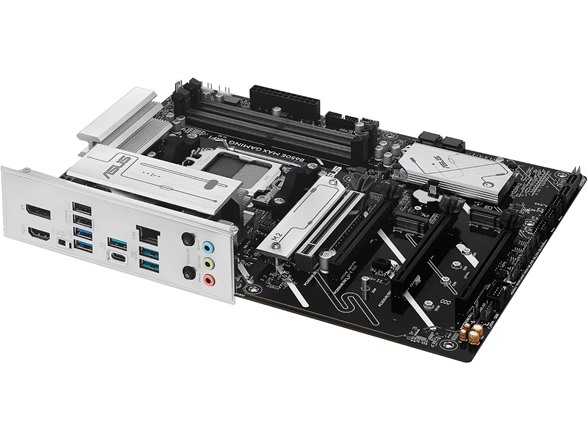

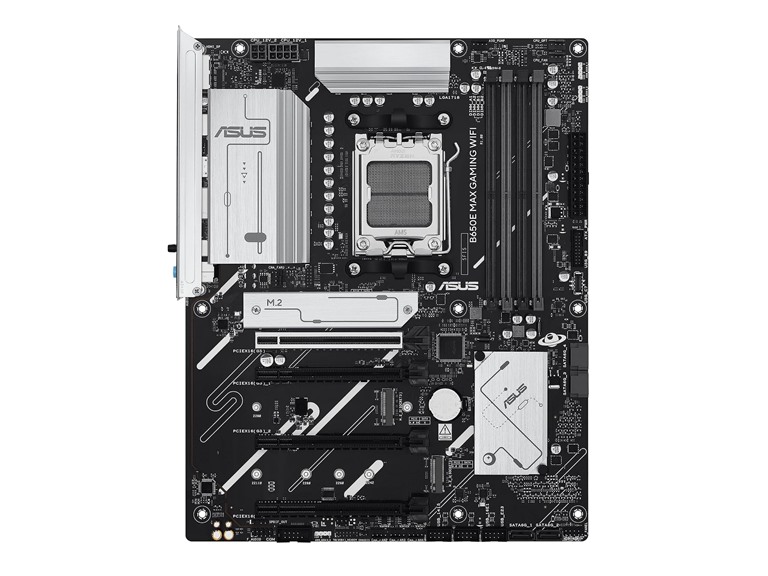

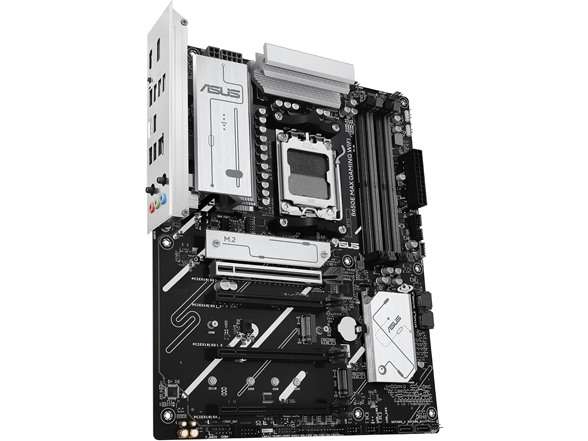

ASUS B650E MAX GAMING WIFI AM5 Motherboard

• Model: ASUS B650E Max Gaming WiFi
• Socket: AM5 (AMD Ryzen 9000 / 8000 / 7000 Series, up to 170W CPU)
• Chipset: AMD B650
• Form Factor: ATX, 12 x 9.6 in (30.5 x 24.4 cm)
• Memory: 4x DIMM, DDR5, max 256GB, dual-channel, up to 8000+MT/s (OC), supports AMD EXPO
• PCIe slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x16 (chipset, x4 mode), 2x PCIe 3.0 x16 (physical) slots running x1 mode
• M.2 slots: 3 total (Key M) — M.2_1 PCIe 5.0 x4; M.2_2 PCIe 4.0 x4; M.2_3 PCIe 4.0 x2 (chipset)
• SATA: 4x SATA 6Gb/s
• Ethernet: 1x Realtek 2.5Gb LAN
• Wireless: Wi-Fi 6E (802.11ax, 2x2), Bluetooth 5.3

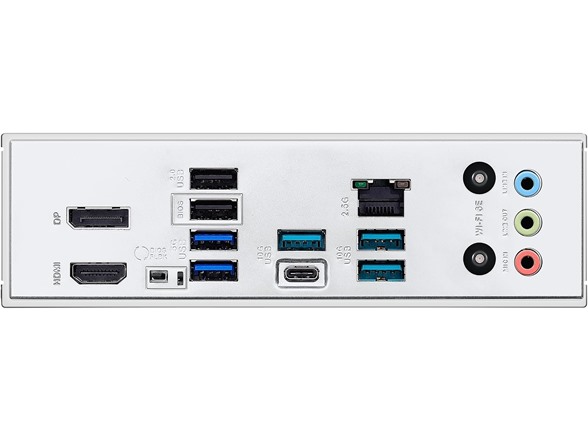

• Rear USB: 1x USB 10Gbps (Type-C), 3x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A), 2x USB 2.0 (Type-A) — 8 total
• Video out: 1x DisplayPort 1.4, 1x HDMI 2.1 (requires CPU with integrated graphics)
• Audio: Realtek codec, 7.1 surround, 24-bit/192kHz
• Power: 24-pin main + 8-pin + 4-pin CPU power; DIGI+ VRM
• Fan headers: CPU fan, CPU OPT, AIO pump, 4x chassis fan
• Convenience features: BIOS FlashBack, Q-LED Core, pre-mounted I/O shield
• BIOS: 256Mb Flash ROM, UEFI AMI
• OS support: Windows 11, Windows 10 64-bit

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

• (1) ASUS B650E MAX GAMING WIFI AM5 Motherboard PCIe 5.0 DDR5
• (1) Wi-Fi Antenna (may be original or generic)
