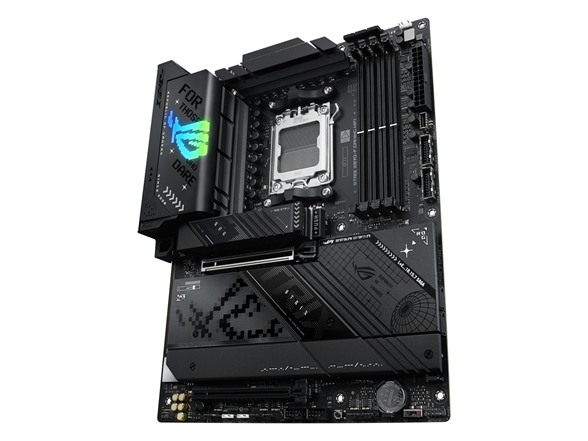

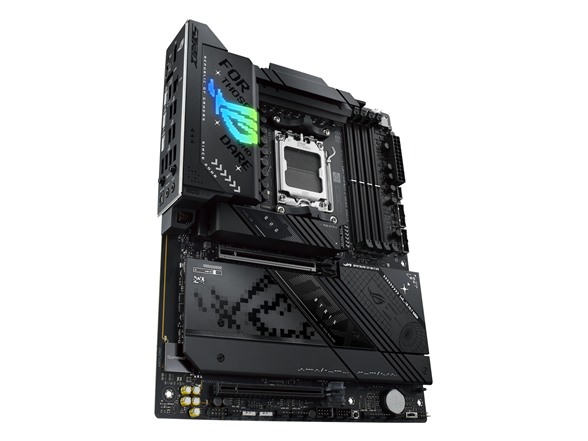

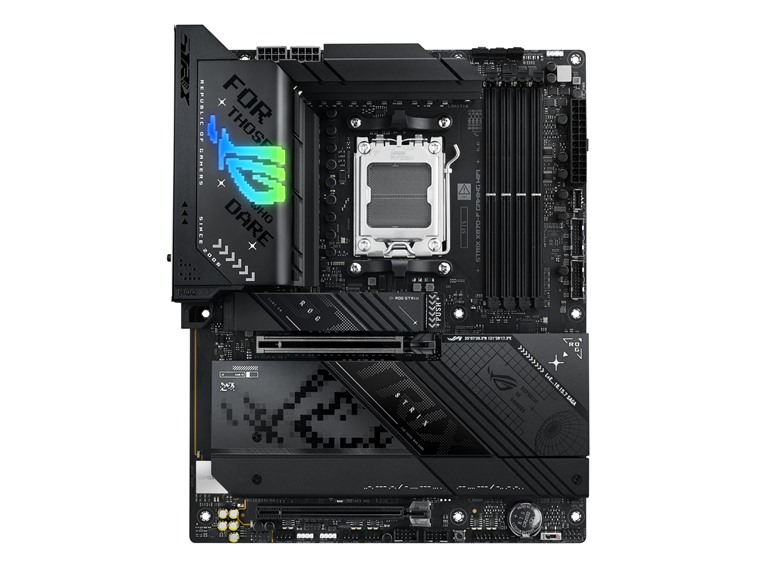

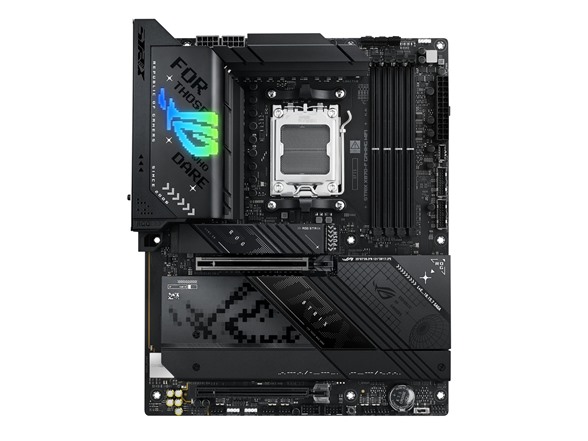

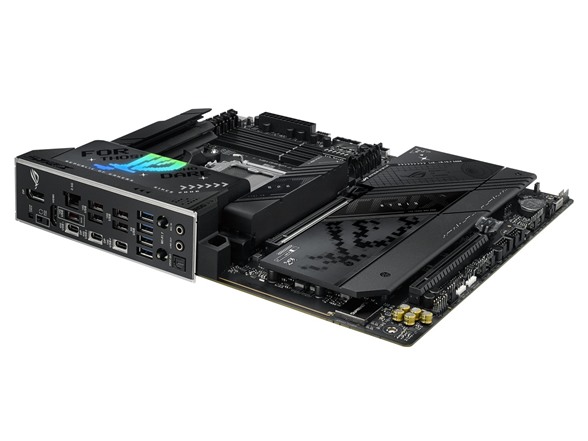

ASUS ROG Strix X870-F Gaming WiFi Motherboard

• Model: ASUS ROG Strix X870-F Gaming WiFi
• Socket: AM5 (AMD Ryzen 9000 / 8000 / 7000 Series)
• Chipset: AMD X870
• Form Factor: ATX, 12 x 9.6 in (30.5 x 24.4 cm)
• Memory: 4x DIMM, DDR5, max 256GB, dual-channel, up to 8000+MT/s (OC), supports AMD EXPO
• PCIe slots: 1x PCIe 5.0 x16 (Ryzen 9000/7000 only — x8/x4 on Ryzen 8000), 1x PCIe 4.0 x16 (chipset, x4 mode)
• M.2 slots: 4 total (Key M) — M.2_1 PCIe 5.0 x4; M.2_2 PCIe 5.0 x4; M.2_3 PCIe 4.0 x4; M.2_4 PCIe 4.0 x4
• SATA: 2x SATA 6Gb/s
• Ethernet: 1x Intel 2.5Gb LAN
• Wireless: Wi-Fi 7 (802.11be, 2x2, 320MHz), Bluetooth 5.4

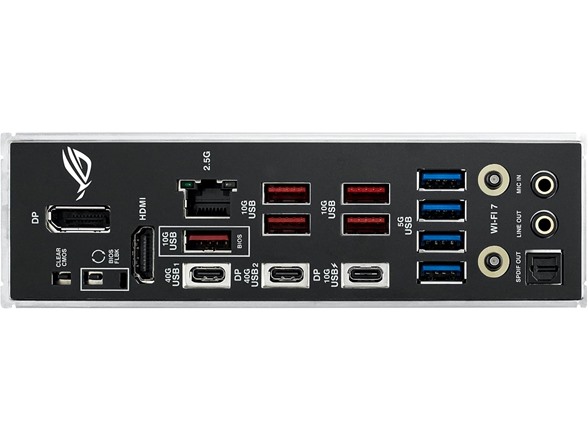

• Rear USB: 2x USB4 (40Gbps, USB-C, DP Alt mode), 6x USB 10Gbps (5x Type-A + 1x Type-C w/ 30W PD), 4x USB 5Gbps (Type-A) — 12 total
• Video out: 1x DisplayPort 1.4, 1x HDMI 2.1 (both require CPU with integrated graphics)
• Audio: ROG SupremeFX ALC4080 codec, 7.1 surround, optical S/PDIF out

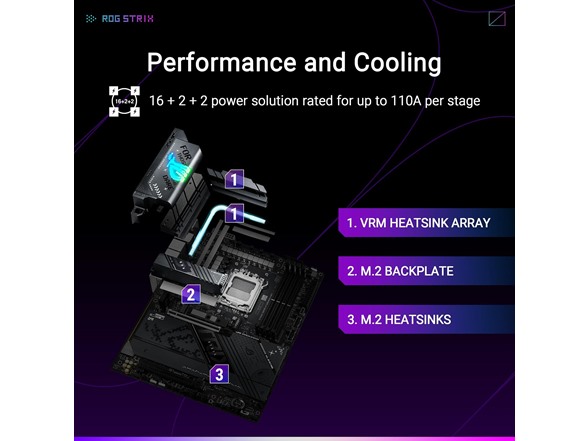

• Power: 24-pin main + 2x 8-pin CPU power; VRM described as "Extreme Engine Digi+"
• Fan headers: CPU fan, CPU OPT, AIO pump, 5x chassis fan headers

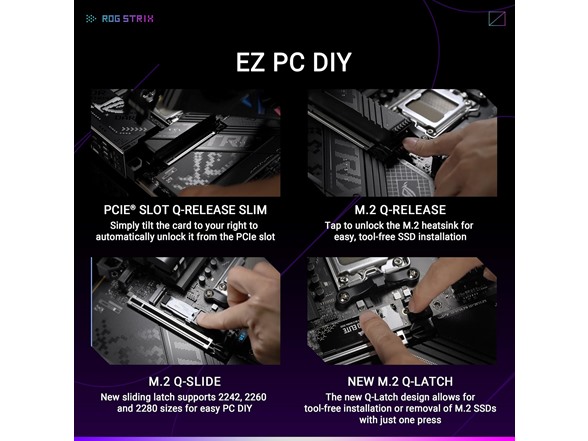

• Convenience features: BIOS FlashBack, Clear CMOS button, Q-LED, M.2 Q-Latch/Q-Release/Q-Slide, PCIe Slot Q-Release Slim, pre-mounted I/O shield
• BIOS: 256Mb Flash ROM, UEFI AMI

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

• (1) ASUS ROG Strix X870-F Gaming WiFi Motherboard - AM5, PCIe 5.0, Wi-Fi 7, Dual USB4
• (1) Wi-Fi Antenna (may be original or generic)
