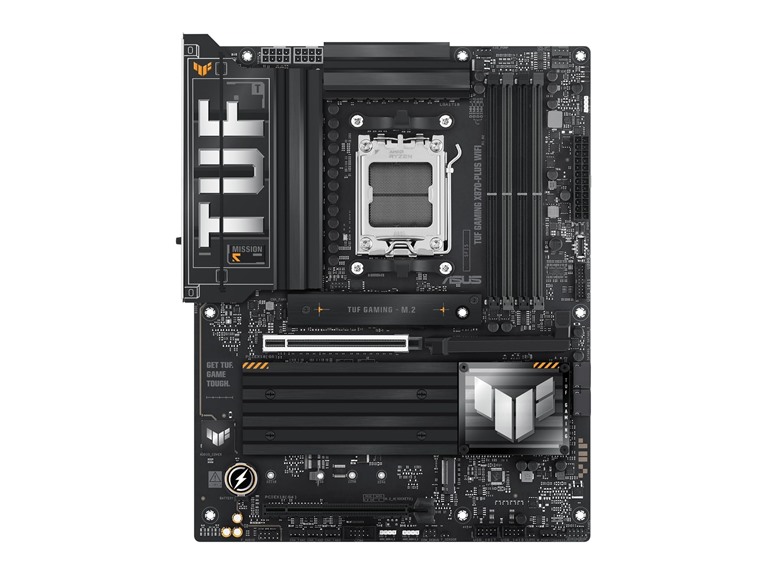

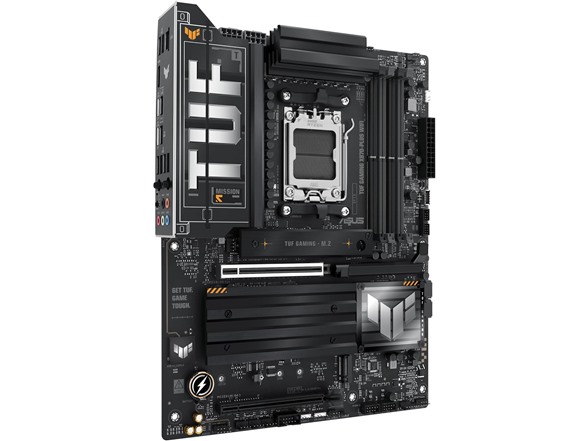

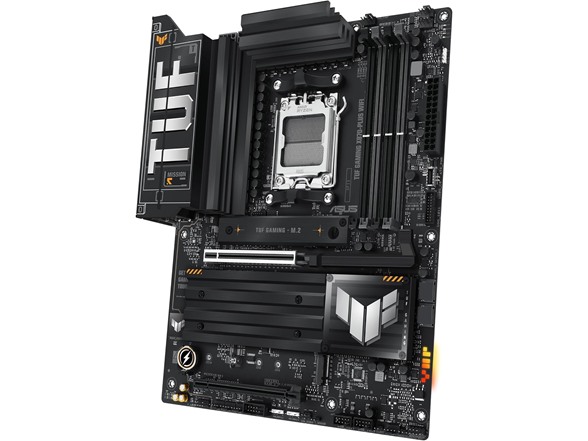

ASUS TUF Gaming X870-PLUS WIFI AM5 Motherboard

• Model: ASUS TUF Gaming X870-Plus WiFi
• Socket: AM5 (AMD Ryzen 9000 / 8000 / 7000 Series)
• Chipset: AMD X870
• Form Factor: ATX, 12 x 9.6 in (30.5 x 24.4 cm)
• Memory: 4x DIMM, DDR5, max 256GB, dual-channel, up to 8000+MT/s (OC), supports AMD EXPO
• PCIe slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (chipset, x4 mode)
• M.2 slots: 4 total (Key M) — M.2_1 PCIe 5.0 x4; M.2_2 PCIe 5.0 x4; M.2_3 PCIe 4.0 x4; M.2_4 PCIe 4.0 x4 (2242/2260/2280/22110)
• SATA: 2x SATA 6Gb/s
• Ethernet: 1x Realtek 2.5Gb LAN
• Wireless: Wi-Fi 7 (802.11be, 2x2, 160MHz, up to 2.9Gbps), Bluetooth 5.4
• Rear USB: 2x USB4 (40Gbps, Type-C), 3x USB 10Gbps (Type-A), 4x USB 5Gbps (Type-A), 1x USB 2.0 (Type-A) — 10 total
• Video out: 1x HDMI 2.1 (no DisplayPort on this board — requires CPU with integrated graphics)
• Audio: Realtek ALC1220P codec, 7.1 surround
• Power: 24-pin main + 2x 8-pin CPU power; DIGI+ VRM digital power design
• Fan headers: CPU fan, CPU OPT, AIO pump, 4x chassis fan, 1x W_PUMP+
• Convenience features: BIOS FlashBack, Q-LED, M.2 Q-Latch, PCIe Slot Q-Release, stainless-steel I/O shield
• BIOS: 256Mb Flash ROM, UEFI AMI

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

• (1) ASUS TUF Gaming X870-PLUS WIFI AM5 Motherboard - USB4 Wi-Fi 7 PCIe 5.0 DDR5
• (1) Wi-Fi Antenna (may be original or generic)
