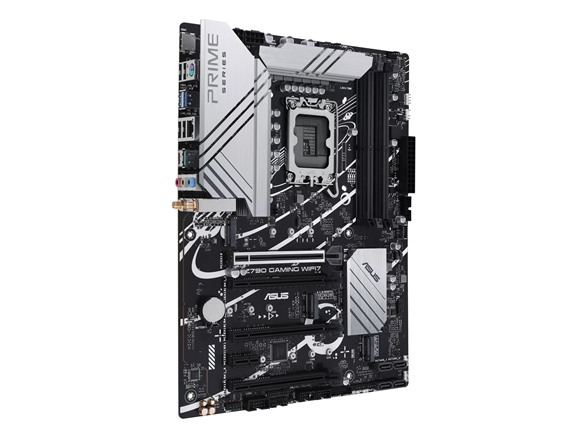

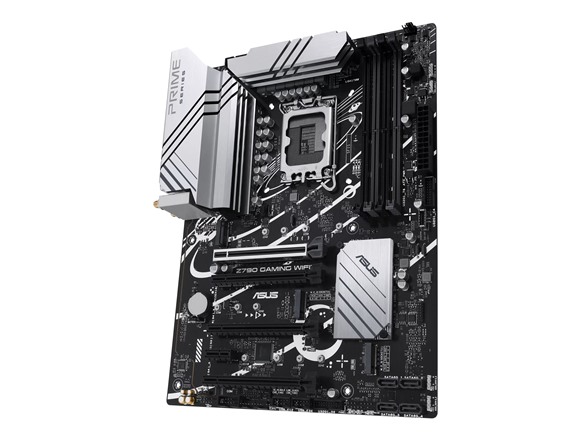

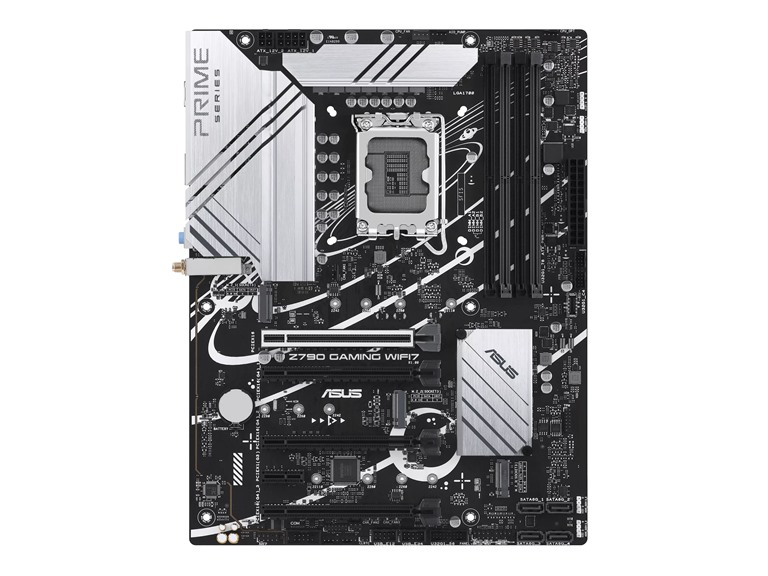

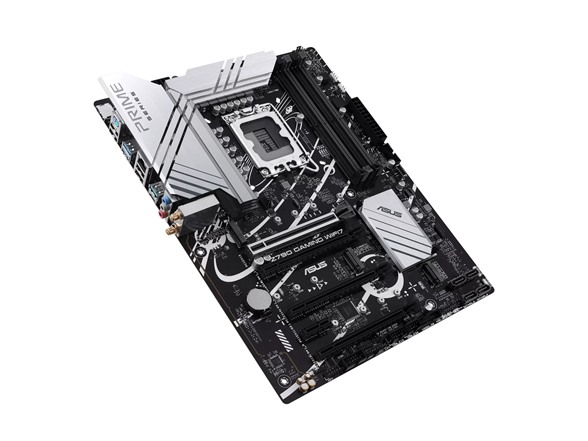

ASUS Z790 GAMING WIFI7 Motherboard

• Model: ASUS Z790 Gaming WiFi7
• Socket: LGA1700 (Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron)
• Chipset: Intel Z790
• Form Factor: ATX, 12 x 9.2 in (30.5 x 23.4 cm)
• Memory: 4x DIMM, DDR5, max 192GB, dual-channel, up to DDR5-7200 (OC), supports Intel XMP
• PCIe slots: 1x PCIe 5.0 x16 (CPU), 3x PCIe 4.0 x16 (chipset, x4 mode each), 1x PCIe 3.0 x1
• M.2 slots: 3 total (Key M) — M.2_1 PCIe 4.0 x4 (CPU); M.2_2 PCIe 4.0 x4 (chipset); M.2_3 PCIe 4.0 x4 or SATA (chipset)
• SATA: 4x SATA 6Gb/s
• Ethernet: 1x Realtek 1Gb LAN
• Wireless: Wi-Fi 7 (802.11be, 2x2), Bluetooth 5.4
• Rear USB: 1x USB 3.2 Gen 2x2 (20Gbps, Type-C), 1x USB 3.2 Gen 2 (10Gbps, Type-A), 2x USB 3.2 Gen 1 (5Gbps, Type-A), 4x USB 2.0 (Type-A) — 8 total
• Video out: 1x HDMI 2.1 (requires CPU with integrated graphics; no DisplayPort)
• Audio: Realtek codec, 7.1 surround, 24-bit/192kHz
• Power: 24-pin main + 8-pin + 4-pin CPU power; DIGI+ VRM with DrMOS
• Fan headers: CPU fan, CPU OPT, AIO pump, 3x chassis fan
• Convenience features: Q-LED Core, PS/2 combo port, stainless-steel I/O shield
• BIOS: 192Mb Flash ROM, UEFI AMI

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

• (1) ASUS Z790 GAMING WIFI7 Motherboard | Intel LGA1700 | PCIe 5.0 | DDR5 | USB 3.2
• (1) Wi-Fi Antenna (may be original or generic)
