Digital LCR Meter 100Hz~10K Benchtop I
10 days left or until sold out
Retail Price: $245.99 (+30%)
Features
- ★【Test frequency】0.10% basic accuracy, 10 fixed points (100, 120, 200, 400, 800, 1K, 2K, 4K, 8K, 10K）
- ★【Measurement parameters】L/C/R/Z, X/D/Q/theta/ESR; 5 digits display
- ★【Measurement range】L：0.001μH～9999H，C：0.001pF～99.999mF，R：0.0001Ω～99.99MΩ

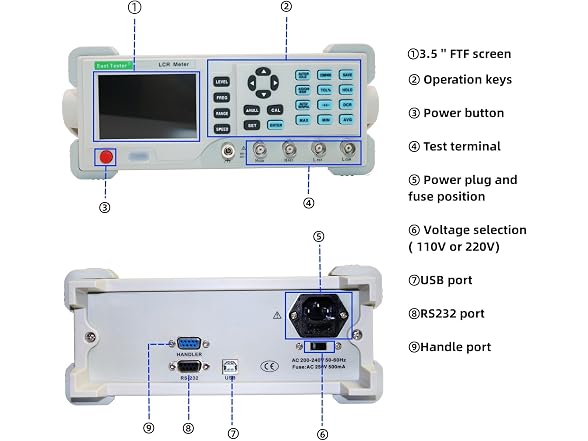

- ★【Communication】RS232; USB Device; Handle; Please contact seller for SCPI protocol if required by Amazon message
- ★【Other details】Supporting Electrolytic capacitor mode(DCR), Open circuit and short circuit calibration functions; adjustable background brightness.
Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item
Warranty: 90 Day Woot Limited Warranty

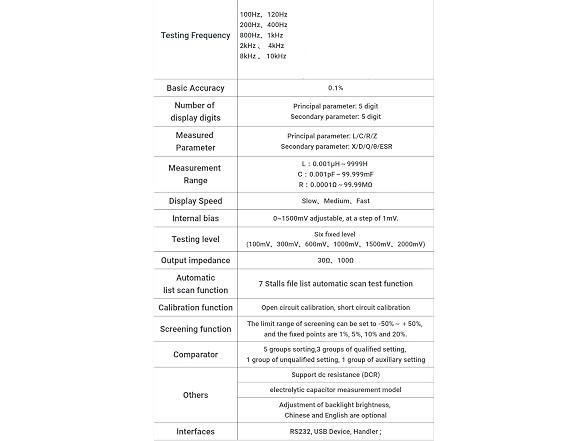

Specs
| Specifications | |
|---|---|
| Brand Name | Generic |
| Color | white |
| Compatible Devices | Electronic devices, circuit boards, electronic components, devices supporting SCPI Communication Protocol |
| Ean | 0795958853272 |

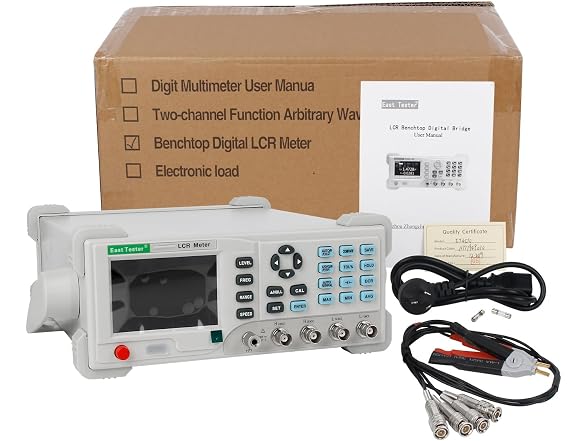

| Included Components | LCR METER |
| Measurement Accuracy | 0.1% |
| Measurement Type | Multimeter , LCR Meter |
| Model Number | ET1090A |
| Number of Items | 1 |
| Part Number | WMET-ET1090A-795958853272 |
| Power Source Type | Battery Powered |
| Specification Met | Ce, Iec 61010-1 |
| Style | Compact |
| UNSPSC Code | 41113600 |
| UPC | 795958853272 |
