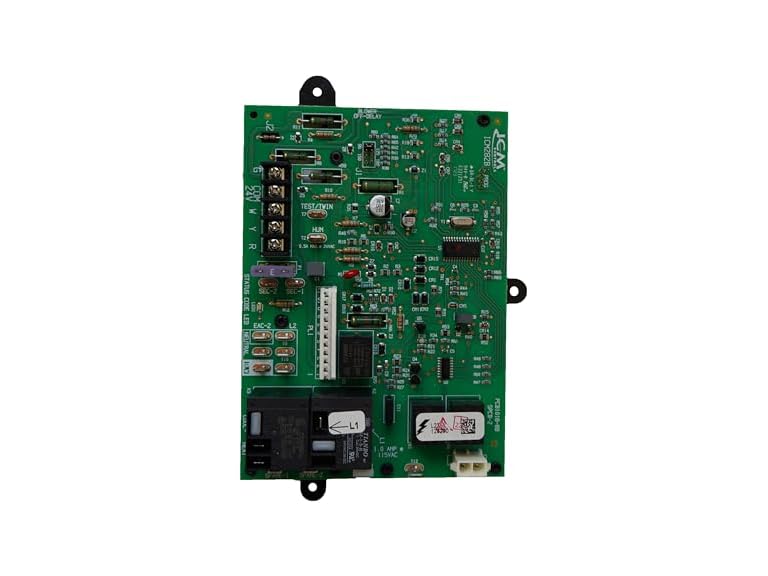

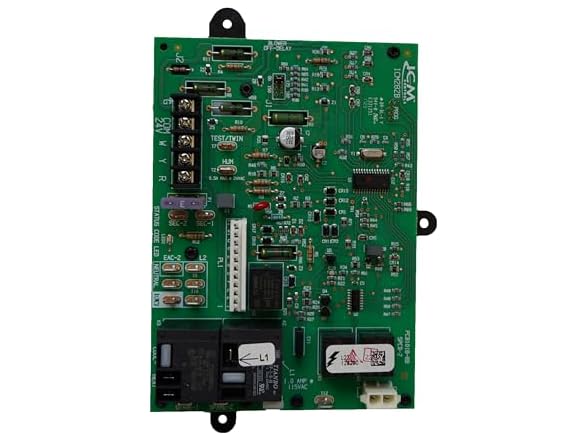

Generic ICM282B - Control Board for Popular Carr

7 days left or until sold out

Buy for $185.07

Retail Price: $264.39 (+30%)

Share on Facebook Share on X Share on Reddit

Copy Link

https://forums.woot.com/t/2473509

Features

Replaces: Carrier: CEBD431012-01A, CEPL131012-01, HK42FZ004, HK42FZ007, HK42FZ008,HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034 and325878-751 Low cost replacement furnace control board Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner Microprocessor-based Designed for 100% gas shutoff in case of ignition failure Twinning compatible with other ICM282B boards Reverse polarity protection Secondary brownout voltage protection Compatible with a 24 VAC standard thermostat Provides diagnostic LED to aid in troubleshooting

Voltage: Line (98 to 132 VAC) @ 60Hz
Ignitor: 5A @ 120 VAC
Cool blower: 10A @ 120 VAC
■ Heat: 5A @ 120 VAC
Inducer motor: 4A @ 120 VAC
Gas valve: 1.5A @ 24 VAC
Humidifier: 0.5A @ 24 VAC maximum
Electric air cleaner: 1A @ 120 VAC

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

Specs

In the Box:

(1) Generic ICM282B - Control Board for Popular Carr
