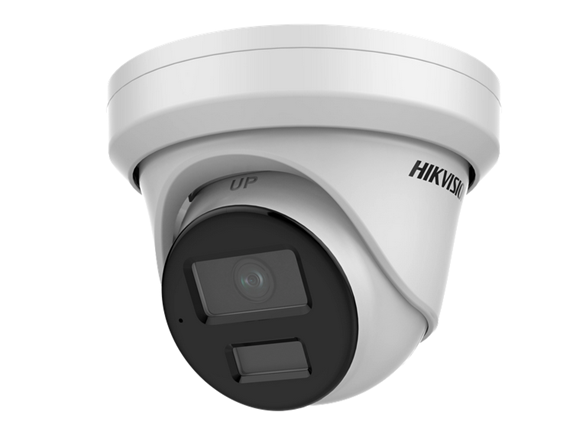

HIKVISION DS-2CD3348G2-LISU 4MP Fixed Turret Camera

 HIKVISION DS-2CD3348G2-LISU 4 MP Dual Illumination Fixed Turret Network Camera
4 MP Dual Illumination Fixed Turret Network Camera

•     High quality imaging with 4 MP resolution
•     Smart Dual-Light: advanced technology with long range
•     Clear imaging against strong back light due to 120 dB WDR technology
•     Efficient H.265+ compression technology
•     Focus on human and vehicle classification based on deep learning
•     -U: Built-in microphone for real-time audio security
•     Water and dust resistant (IP67)

Warranty: 90 Day Woot Limited Warranty

Shipping Note: Shipping to Alaska, Hawaii, and PO Boxes is not available for this item

• (1)  HIKVISION DS-2CD3348G2-LISU 4 MP Dual Illumination Fixed Turret Network Camera
• Manual

•     Camera
•     Image Sensor1/3" Progressive Scan CMOS
•     Max. Resolution2688 × 1520
•     Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
•     Shutter Time1/3 s to 1/100,000 s
•     Day & NightIR cut filter
•     Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
•     Lens
•     Lens TypeFixed focal lens, 2.8 and 4 mm optional
•     Focal Length & FOV
•     2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°
•     4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
•     Lens MountM12
•     Iris TypeFixed
•     ApertureF1.0
•     Depth of Field
•     2.8 mm: 1.9 m to ∞
•     4 mm: 2.5 m to ∞
•     DORI
•     DORI
•     2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m
•     4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m
•     Illuminator
•     Supplement Light TypeIR,White Light
•     Supplement Light RangeUp to 40 m
•     Smart Supplement LightYes
•     IR Wavelength850 nm
•     HEOP
•     Open Resources
•     Memory: 60 MB,
•     Smart RAM: 400 MB,
•     eMMC: 2 GB
•     Computing Power1.5 TOPS
•     Open CapabilityHEOP 2.0 OpendevSDK
•     Deep Learning StructureCaffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
•     Programming LanguageC,C++
•     Video
•     Main Stream
•     50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
•     60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
•     Sub-Stream
•     50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
•     60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
•     Third Stream
•     50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
•     60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
•     *The third stream is supported under certain settings.
•     Fourth Stream
•     50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
•     60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
•     *The fourth stream is supported under certain settings.
•     Video Compression
•     Main stream: H.265/H.264/H.264+/H.265+,
•     Sub-stream: H.265/H.264/MJPEG,
•     Third stream: H.265/H.264,
•     Fourth stream: H.265/H.264/MJPEG,
•     *The third stream and the fourth stream are supported under certain settings.
•     Video Bit Rate32 Kbps to 8 Mbps
•     H.264 TypeBaseline Profile,Main Profile,High Profile
•     H.265 TypeMain Profile
•     Bit Rate ControlCBR,VBR
•     Scalable Video Coding (SVC)H.264 and H.265 encoding
•     Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
•     Target CroppingYes
•     Audio
•     Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
•     Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
•     Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
•     Environment Noise FilteringYes
•     Network
•     ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
•     Simultaneous Live ViewUp to 6 channels
•     APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
•     User/Host
•     Up to 32 users
•     3 user levels: administrator, operator, and user
•     SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
•     Network Storage
•     NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
•     Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
•     ClientiVMS-4200,Hik-Connect,Hik-Central
•     Web Browser
•     Plug-in required live view: IE 10, IE 11,
•     Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
•     Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
•     Image
•     Image Parameters SwitchYes
•     Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
•     Day/Night SwitchDay,Night,Auto,Schedule
•     Image EnhancementBLC,HLC,3D DNR
•     SNR≥ 52 dB
•     Wide Dynamic Range (WDR)120 dB
•     Privacy Mask4 programmable polygon privacy masks
•     Interface
•     Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
•     On-Board Storage
•     Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
•     Built-in Microphone-U: Yes
•     Audio
•     1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
•     1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
•     Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
•     Reset KeyYes
•     Power Output12 VDC, max. 100 mA
•     Event
•     Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
•     LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning
•     Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection,audio exception detection,defocus detection
•     Deep Learning Function
•     Face CaptureYes
•     People CountingYes
•     General
•     Power
•     12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
•     PoE: IEEE 802.3af, Class 3, max. 10 W
•     Material
•     Cover: Metal, main body: Metal
•     DimensionØ127.3 mm × 96.3 mm (Ø5" × 3.8")
•     Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
•     Approx. 550 g (1.2 lb.)
•     With Package WeightApprox. 800 g (1.8 lb.)
•     Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
•     Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
•     General FunctionHeartbeat,mirror,anti-banding,flash log,password reset via email,pixel counter
•     Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
•     Approval
•     EMC
•     FCC: 47 CFR Part 15, Subpart B,
•     CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
•     RCM: AS/NZS CISPR 32: 2015,
•     IC: ICES-003: Issue 7
•     Safety
•     UL: UL 62368-1,
•     CB: IEC 62368-1: 2014+A11,
•     CE-LVD: EN 62368-1: 2014/A11: 2017,
•     BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
•     LOA: IEC/EN 60950-1
•     EnvironmentCE-RoHS: 2011/65/EU
•     ProtectionIP67: IEC 60529-2013
