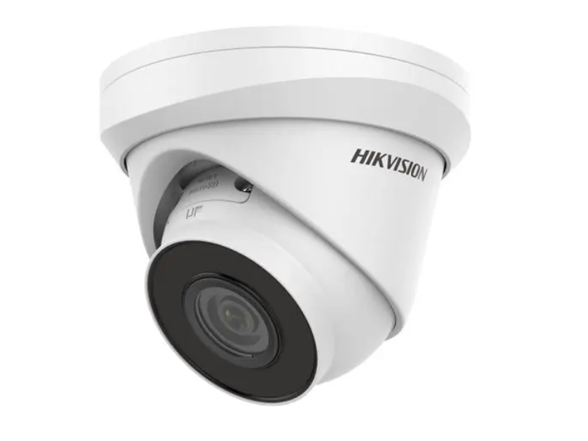

HIKVISION ECI-T22F2 2 MP Build-in Mic Turret Camera

•     High quality imaging with 2 MP resolution
•     Efficient H.265+ compression technology
•     Clear imaging against strong back light due to DWDR technology
•     Water and dust resistant (IP67)
•     EXIR 2.0: advanced infrared technology with long IR range
•     Built-in microphone for real-time audio security
•     Support up to 256 GB SD card storage

Warranty: 90 Day Woot Limited Warranty

Shipping Note: Shipping to Alaska, Hawaii, and PO Boxes is not available for this item

• (1) HIKVISION ECI-T22F2 2 MP Build-in Mic Fixed Turret Network Camera

•     Camera
•     Image Sensor1/2.7" Progressive Scan CMOS
•     Max. Resolution1920 × 1080
•     Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
•     Shutter Time1/3 s to 1/100, 000 s
•     Day & NightIR cut filter
•     Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
•     Lens
•     Focal Length & FOV
•     2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
•     4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
•     Lens MountM12
•     Iris TypeFixed
•     ApertureF2.0
•     Illuminator
•     Supplement Light TypeIR
•     Supplement Light RangeUp to 30 m
•     Smart Supplement LightYes
•     IR Wavelength850 nm
•     Video
•     Main Stream
•     50 Hz: 25 fps (1920 × 1080, 1280 × 720)
•     60 Hz: 30 fps (1920 × 1080, 1280 × 720)
•     Sub-Stream
•     50 Hz: 25 fps (640 × 480, 640 × 360)
•     60 Hz: 30 fps (640 × 480, 640 × 360)
•     Video Compression
•     Main Stream: H.265/H.264/H.264+/H.265+
•     Sub-Stream: H.265/H.264/MJPEG
•     Video Bit Rate32 Kbps to 8 Mbps
•     H.264 TypeBaseline Profile/Main Profile/High Profile
•     H.265 TypeMain Profile
•     Region of Interest (ROI)1 fixed region for main stream
•     Audio
•     Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
•     Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
•     Audio Sampling Rate8 kHz/16 kHz
•     Environment Noise FilteringYes
•     Network
•     ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
•     Simultaneous Live ViewUp to 6 channels
•     APIOpen Network Video Interface, ISAPI
•     User/HostUp to 32 users. 3 levels: administrator, operator and user
•     Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage
•     ClientiVMS-4200, Hik-Connect
•     Web Browser
•     Plug-in required live view: IE 10+
•     Plug-in free live view: Chrome 57.0+, Firefox 52.0+
•     Local service: Chrome 57.0+, Firefox 52.0+
•     Image
•     Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
•     Day/Night SwitchDay, Night, Auto, Schedule
•     Wide Dynamic Range (WDR)Digital WDR
•     SNR≥ 52 dB
•     Image EnhancementBLC, 3D DNR
•     Interface
•     Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
•     On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
•     Built-in MicrophoneYes
•     Reset KeyYes
•     Event
•     Basic Event Motion detection, video tampering alarm, exception
•     LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
•     General
•     Power
•     12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
•     PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
•     DimensionØ110 mm × 85.3 mm (Ø4.3" × 3.4")
•     Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
•     Approx. 320 g (0.7 lb.)
•     With Package WeightApprox. 556 g (1.2 lb.)
•     Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
•     Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
•     LanguageEnglish, Ukrainian
•     General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
•     Approval
•     EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
•     SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
•     EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
•     ProtectionIP67 (IEC 60529-2013)
