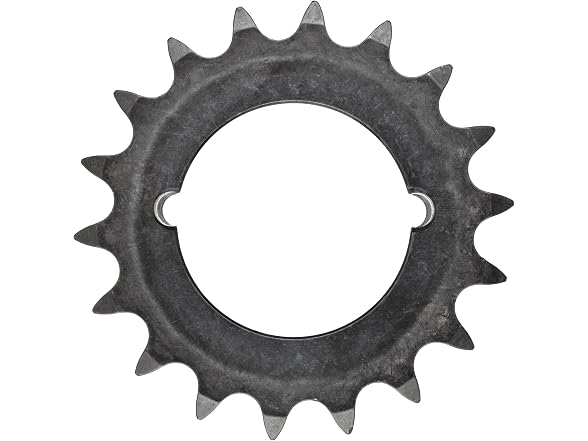

Martin Roller Chain Sprocket, Hardened
7 days left or until sold out
Retail Price: $294.10 (+32%)
Features

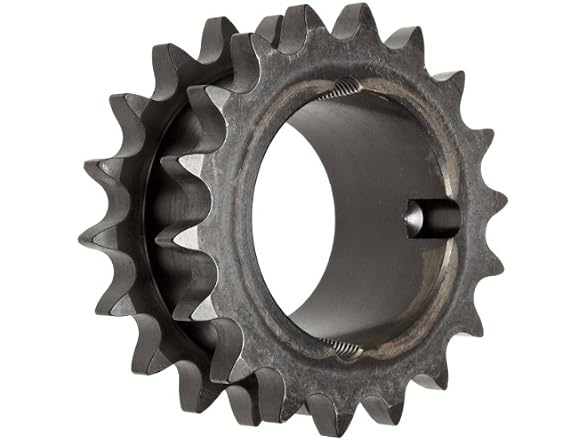

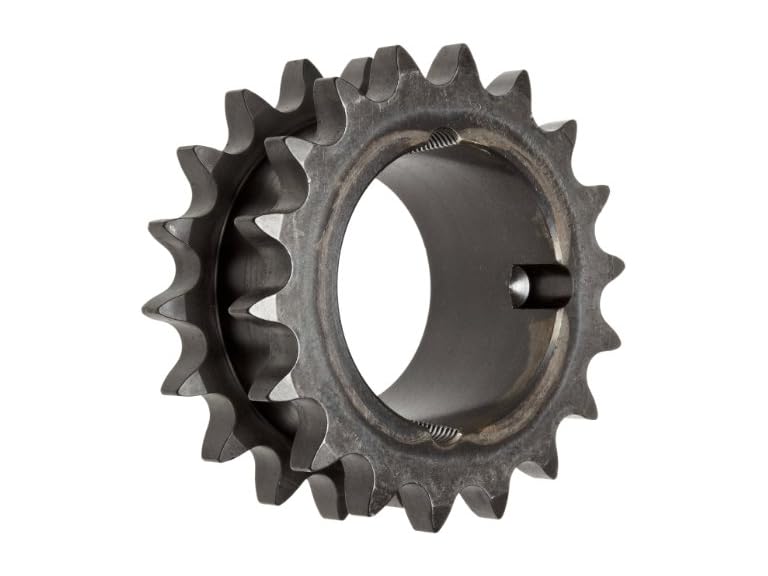

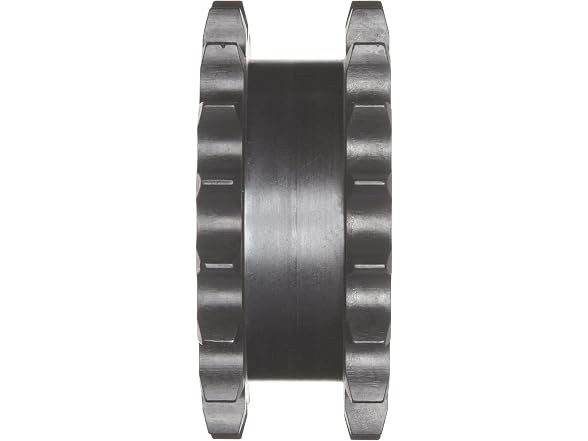

- Double single strand sprocket with two sets of teeth around the circumference for use with two separate single strand chains to increase the load capacity
- Pitch of 3/4 inch for size 60 chains
- Sprocket bore has tapering grooves for inserting and locking into place a taper bushing that fits the diameter of the shaft
- Type A sprocket with a simple plate, bore, and no protruding hub on either side for applications where mounting space is limited
- Sprocket teeth hardened by electrical induction or flame to increase teeth durability against wear, lengthening the service life of the sprocket
Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item
Warranty: 90 Day Woot Limited Warranty
Specs
| Specifications | |
|---|---|
| Bore Diameter | 1.625 inches |
| Ean | 0697950029856 |
| Hub Diameter | 3.21875 inches |
| Item Diameter | 4.46 inches |
| Item Diameter Tolerance | +/- .010 inches |
| Length | 1.9375 inches |
| Material | Carbon Steel |
| Measurement System | Inch |
| Number of Items | 1 |
| Number of Teeth | 17 |
| Outside Diameter | 4.46 inches |
| Part Number | DS60ATB17H |
| Pitch | 0.75 inches |
| Shaft Mounting Type | 1615 |
| Specification Met | Iso 9001 |
| UNSPSC Code | 31171900 |
| UPC | 697950029856 |
| Width | 0.459 inches |
| Brand Name | MARTIN |
| Hub Style | Type A |
| Number of Teeth | 60 |
| Shaft Mounting Type | Bushing |
| Size | 60 |
| Special Features | Double Single Strand |
| Style | Taper Bushed |
| UNSPSC Code | 31171901 |
- (1) Martin Roller Chain Sprocket, Hardened
