Features

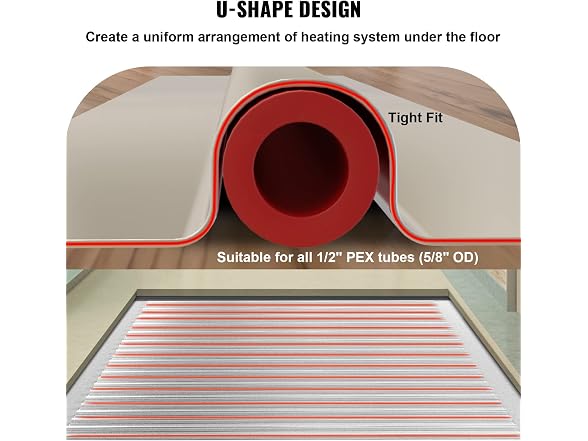

200pcs Heat Transfer PlatesHere we will provide you high-quality heat transfer plates set for radiant floor heating system. It is designed for even heat distribution and can reduce supply temperature by 30-40%. With it, you will never worry about the uneven heating at home. Do not hesitate to purchase it. key Features Premium Aluminum Plate Made of advanced aluminum, it is sturdy & long service time. Give you even heat distribution and reduce 30-40% supply temperature. U-Shaped Channel Design Technical U-shaped channel, easily snap 1/2" PEX tube into the plate to hold it in place. It also can be effortlessly stapled with its only 0.016" thickness. Various Installation Ways Multiple ways: Installed in under floor(between joist), sandwich type, or above sub-floor(sleeper) heat system, also used for radiant wall & ceiling. Cuttable PEX Plates Using tin snips to easily cut the heat transfer plates, and apply pliers to widen channel mouths. Customize its length according to your actual needs. You Should Know You are suggested to leave 1-2" spacing between plates. Plates Consuming Circulation: Number of Plates = Square Footage x 1.30 / length of plates. Wide Application Our product is designed for cooperating with PEX tube on radiant floor heating system. Suitable for hotel, home, apartment, and ceiling use. Specifications Material: Aluminum Compatibility: for 1/2" PEX Tube Amount: 200 pcs Plate Length: 4 ft Plate Width: 4.25'' Plate Thickness: 0.016" Package Content 200 x Heat Transfer Plate

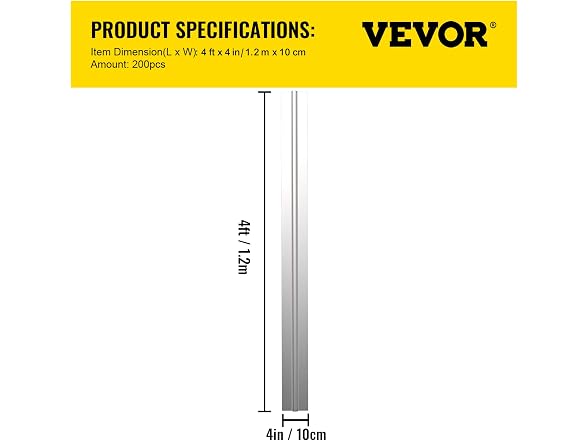

  • Premium PEX Tube: Material: Aluminum; Length: 4 ft; Amount: 200 pcs; Width: 4.25"; Excellent product to provide a superior heat transfer function for home and commercial radiant floor system.
  • High Compatibility: Our radiant heat transfer plates are suitable for most type of 1/2" PEX tubing(5/8" OD). Compatible with most brands' PEX, PEX-AL-PEX or EVOH coated 'Oxygen Barrier' pipes.

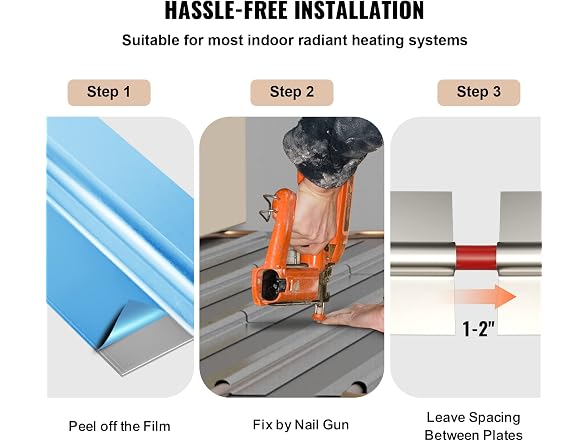

  • Easy Installation: Installed in radiant system of under-floor (between joist) type, sandwich type, above sub-floor(sleeper), wall & ceiling. Cuttable design to satisfy different needs. Notice: You should leave 1-2" spacing between plates when you set up.

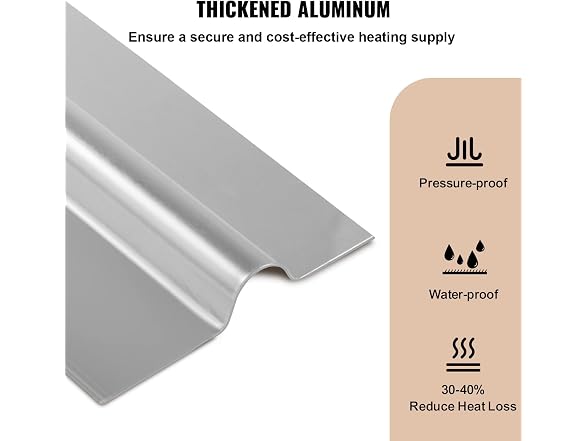

  • Thickness & Note: This in floor heat plates feature 0.016" standard thickness, can be stapled by hand or stapler. Its U-shaped design reduces thermal voids that occur from gaps between plates & tubes.

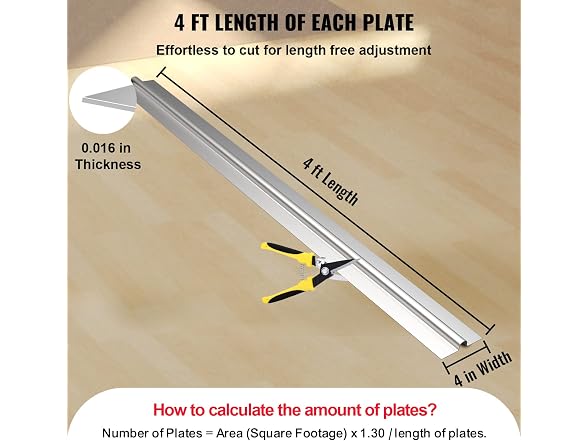

  • Diverse Uses: Perfect to enhance heat transfer of the system and make the needed water supply temperature lower. Power-saving PEX heat transfer plates to use at home, apartment, hotel, etc. Number of Plates = Square Footage x 1.30 / length of plates. Example: 1000 Square Footage: Area Multiply by 1.30 = 1300ft of plates. (650 plates of the 2ft version OR 325 plates of the 4 ft version)

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 90 Day Woot Limited Warranty

Specs

In the Box:
  • PEX Heat Transfer Plates 4 ft, Radiant 160455
