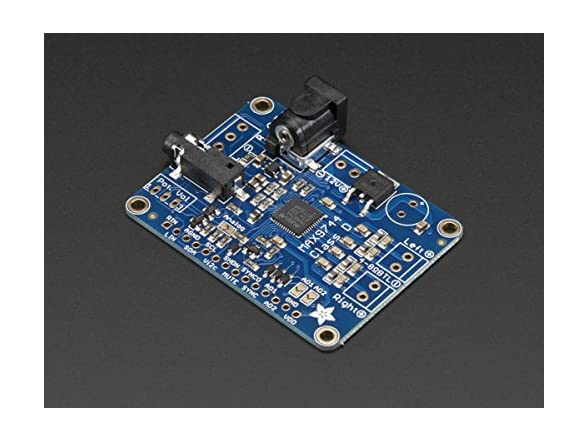

Stereo Audio Amplifier
12 days left or until sold out
Retail Price: $22 (+38%)
Features
- Power From 4.5V-14V Dc Voltage
- Up To 93% Efficient (88-93% Typical)
- 20Ma Quiescent Current (Or Put Into Shutdown For 1Ua Quiescent)
- Up To 29.5Db Max Gain
- Use Dc Or Ac Coupled Line-Level Input, Up To 3Vpp.Filterless Spread-Spectrum Modulation Lowers.20W Stereo Output (4&Amp;Omega;, Vdd 12V, Thd+N 10%).Low 0.04% Thd+N.Integrated Click-And-Pop Suppression.Short-Circuit And Thermal-Overload Protection
Shipping Note: Shipping to Alaska, Hawaii, P.O. Boxes, and APO addresses is not available for this item
Warranty: 90 Day Woot Limited Warranty
Specs

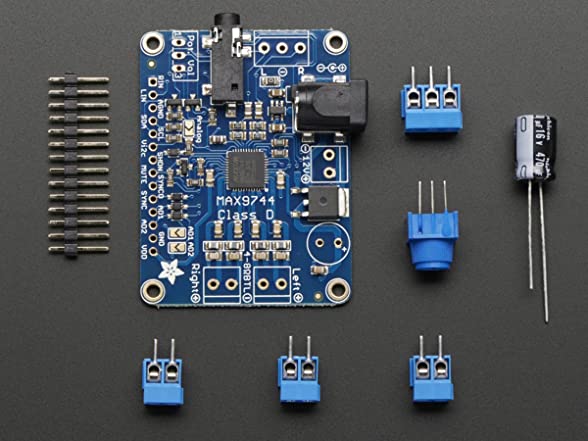

In the Box: (1) Stereo 20W Class D Audio Amplifier - MAX9744
